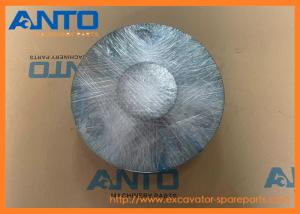

• 207-27-71161 2072771161 Carrier Support For KOMATSU PC220LL PC270 PC290 PC300 PC300HD

• ​Specification

• Compatible models

EXCAVATORS PC220LL PC270 PC290 PC300 PC300HD PC308 PC340 PC350 PC360 PC380
MOBILE CRUSHERS AND RECYCLERS BR580JG Komatsu

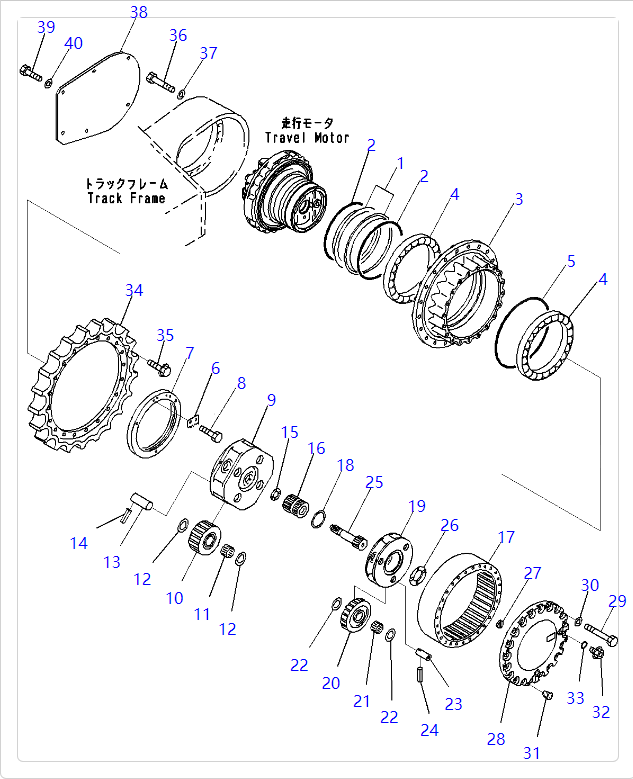

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
	207-27-00470	[2]	FINAL DRIVE ASS'Y,F/D Komatsu	670 kg.
			["SN: 20001-UP"] analogs:["2072700471"] |1.
	207-27-00310	[1]	Seal Assembly Komatsu OEM	3.72 kg.
			["SN: 20001-UP"] analogs:["1702700025", "1702700024", "4233300021"] |1.
1	207-27-61331	[2]	Seal Komatsu China
			["SN: 20001-UP", "SCC: C1"]
2	421-33-11680	[2]	O-ring Komatsu	0.15 kg.
			["SN: 20001-UP"]
3.	207-27-71311	[1]	Hub Komatsu OEM	116.5 kg.
			["SN: 20001-UP"]
4.	207-27-71330	[2]	Bearing Komatsu OEM	7 kg.
			["SN: 20001-UP"]
5.	207-27-52350	[1]	O-ring Komatsu China	0.02 kg.
			["SN: 20001-UP"]
6.	207-27-71370	[1]	Lock Komatsu	0.075 kg.
			["SN: 20001-UP"]
7.	207-27-71360	[1]	Nut, Lock Komatsu	5.1 kg.
			["SN: 20001-UP"]
8.	01010-81020	[2]	Bolt Komatsu	0.161 kg.
			["SN: 20001-UP"] analogs:["801014093", "0101051020", "801015108"]
9.	207-27-71320	[1]	Carrier Komatsu OEM	38.5 kg.
			["SN: 20001-UP"]
10.	207-27-71140	[4]	Gear Komatsu OEM	8.28 kg.
			["SN: 20001-UP"]
11.	207-27-63210	[4]	Bearing Komatsu OEM	0.6 kg.
			["SN: 20001-UP"]
12.	20Y-27-21250	[8]	Washer Komatsu China	0.03 kg.
			["SN: 20001-UP"]
13.	207-27-63230	[4]	Pin Komatsu OEM	1.68 kg.
			["SN: 20001-UP"]
14.	20Y-26-21330	[4]	Pin Komatsu China	0.1 kg.
			["SN: 20001-UP"]
15.	20Y-27-13310	[1]	Washer Komatsu China	0.08 kg.
			["SN: 20001-UP"]
16.	207-27-71130	[1]	Gear Komatsu OEM	3.14 kg.
			["SN: 20001-UP"]
17.	207-27-71152	[1]	Gear Komatsu OEM	55.8 kg.
			["SN: 20001-UP"] analogs:["2072771151"]
18.	207-27-71250	[1]	Washer Komatsu OEM	0.05 kg.
			["SN: 20001-UP"]
19.	207-27-71161	[1]	Carrier Komatsu OEM	9.4 kg.
			["SN: 20001-UP"]
20.	207-27-71121	[3]	Gear Komatsu OEM	4.83 kg.
			["SN: 20001-UP"]
21.	207-27-61220	[3]	Bearing Komatsu China	0.74 kg.
			["SN: 20001-UP"]
22.	20Y-27-21240	[6]	Washer Komatsu China	0.02 kg.
			["SN: 20001-UP"]
23.	207-27-61240	[3]	Pin Komatsu China	2.49 kg.
			["SN: 20001-UP"]
24.	20Y-27-21280	[3]	Pin Komatsu China	0.01 kg.
			["SN: 20001-UP"]
25.	207-27-71352	[1]	Shaft Komatsu China	2.1 kg.
			["SN: 20001-UP"]
26.	20Y-27-11250	[1]	Spacer Komatsu OEM	0.044 kg.
			["SN: 20001-UP"] analogs:["2052771570"]
27.	20Y-27-22250	[1]	Button Komatsu China	0.05 kg.
			["SN: 20001-UP"]
28.	207-27-71340	[1]	Cover Komatsu	55.32 kg.
			["SN: 20001-UP"] analogs:["2072771341"]
29.	01011-61880	[20]	Bolt Komatsu	0.402 kg.
			["SN: 20001-UP"]
30.	01643-31845	[20]	Washer Komatsu China	0.02 kg.
			["SN: 20001-UP"] analogs:["0164321845", "R0164331845"]
31.	07049-01215	[2]	Plug Komatsu	0.001 kg.
			["SN: 20001-UP"]
32.	07044-12412	[3]	Plug, with Magnet Komatsu	0.09 kg.
			["SN: 20001-UP"] analogs:["0704402412", "R0704412412"]
33.	07002-02434	[3]	O-ring Komatsu China	0.01 kg.
			["SN: 20001-UP"] analogs:["0700212434", "0700213434"]
34.	207-27-71460	[1]	Sprocket Komatsu China	66.7 kg.
			["SN: 20001-UP"] analogs:["2072761210"]
35.	207-27-51311	[20]	Bolt Komatsu China	0.222 kg.
			["SN: 20001-UP"] analogs:["2072751310", "20727K1120", "20727K1130"]
36	01010-82075	[42]	Bolt Komatsu China	0.25 kg.
			["SN: 20001-UP"] analogs:["0101062075", "0101032075", "0101052075"]
37	01643-32060	[42]	Washer Komatsu China	0.044 kg.
			["SN: 20001-UP"] analogs:["802170007", "0164322045", "0164302045"]
38	207-30-71242XC	[2]	Cover Komatsu China
			["SN: 20001-UP"]
39	01010-81640	[12]	Bolt Komatsu	0.264 kg.
			["SN: 20001-UP"] analogs:["0101061640", "801015186", "0101031640", "0101051640"]
40	01643-31645	[12]	Washer Komatsu	0.072 kg.
			["SN: 20001-UP"] analogs:["802170005", "0164301645"]

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .

• Product Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance
