| Application | C A T Excavator Electric Parts |
| Name | Speed Sensor |
| Parts No | 1961185 196-1185 |
| Model | 924G 924GZ 924H 924HZ 928H 928HZ 930G 938G II 938H 980H 992K 994F |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
ARTICULATED TRUCK 730C
EJECTOR TRUCK
INTEGRATED TOOLCARRIER IT28G IT38G II IT38H
LANDFILL COMPACTOR 836G 836H
MOTOR GRADER 24M
PETROLEUM PACKAGE CX31-C13I CX31-C15I CX31-C18I CX31-C9I CX35-C18I CX35-P800
PETROLEUM TRANSMISSION CX31-P600 CX35-P800 TH55-E70
TRACK-TYPE TRACTOR D6N
TRANSMISSION-ONHIGHWAY CX35
TRUCK 797F
UNDERGROUND ART TRUCK AD55B AD60
WHEEL DOZER 834G 834H 854K
WHEEL LOADER 924G 924GZ 924H 924HZ 928H 928HZ 930G 938G II 938H 980H 992K 994F
WHEEL SKIDDER 525C 535C 545C
WHEEL TRACTOR 621H 623H 627H
WHEEL TRACTOR-SCRAPER 621K 623K 623K LRC 627K 627K LRC
- More sensor parts supplied to C A T machine
| 3447389 SENSOR GP-PRESSURE |
| 120M, 120M 2, 12M 2, 12M 3, 12M 3 AWD, 140M, 140M 2, 140M 3, 140M 3 AWD, 14M, 160M, 160M 2, 160M 3, 160M 3 AWD, 16M, 2384C, 2484C, 308E SR, 525D, 535D, 545D, 555D, 559C, 579C, 824K, 834K, 836K, 844K, ... |
| |
| 1593219 SENSOR |
| G3606, G3606B, G3608, G3612, G3616 |
| |
| 2218859 SENSOR AS-PRESSURE |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 313D2, 314C, 314D CR, 314D LCR, 315C, 315D L, 318C, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC,... |
| |
| 3669312 SENSOR AS-PRESSURE |
| 311D LRR, 311F LRR, 314D CR, 314D LCR, 315D L, 318D2 L, 319D L, 319D LN, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA, 324D, 324D L, 324D ... |
| |
| 4343436 SENSOR AS-PRESSURE |
| 311D LRR, 311F LRR, 312D, 312D L, 312D2, 314D CR, 314D LCR, 315D L, 318D2 L, 319D L, 319D LN, 320D, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 321D LCR, 323D L, 323D LN, 32... |
| |
| 2602180 SENSOR AS-PRESSURE |
| 311D LRR, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 313D, 313D2, 313D2 LGP, 314D CR, 314D LCR, 315D L, 318D L, 318D2 L, 319D, 319D L, 319D LN, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D... |
| |
| 3491178 SENSOR-PRESSURE |
| 525D, 535D, 545D, 824K, 825K, 826K, 834K, 836K, 844K, 924K, 930K, 938K, 950K, 962K, 963D, 966K, 966M, 966M XE, 972K, 972M, 972M XE, 980H, 980K, 980M, 982M, 988H, 988K, 990K, 992K, 993K, 994H, CB-44B, ... |
| |
| 3447390 SENSOR GP-PRESSURE |
| 311F LRR, 312E, 312E L, 314E CR, 314E LCR, 316E L, 318E L, 320E, 320E L, 320E LN, 320E LRR, 320E RR, 323D2 L, 323E L, 324E, 324E L, 324E LN, 329E, 329E L, 329E LN, 330D, 330D L, 336D, 336D L, 336D2, 3... |
| |
| 2610420 SENSOR GP-PRESSURE |
| 2470C, 2570C, 2670C, 2864C, 553C, 563C, 573C, 584, 586C, 906H, 907H, 908H, 953D, 963D, 973D, D3K XL, D4K XL, D5K LGP, D6K, D6K LGP, D6R III, D6T, D7R II, PL61 |

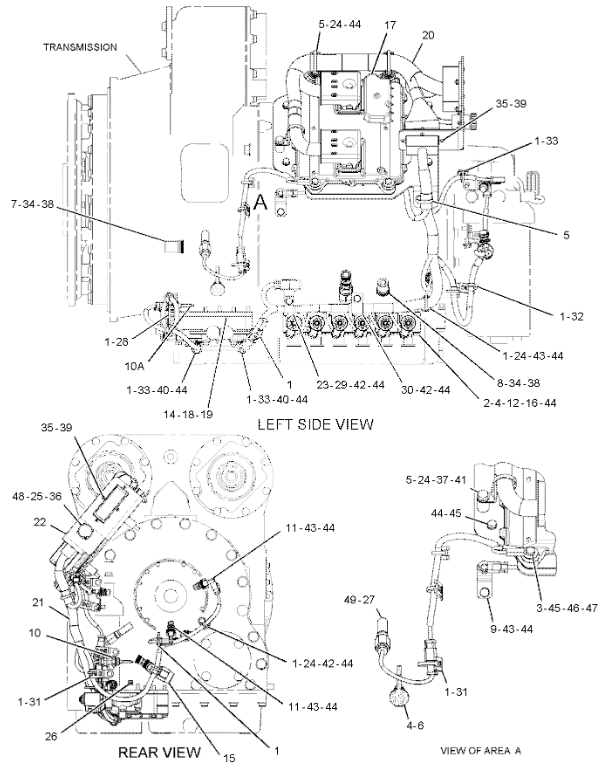

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 3S-2093 | [16] | STRAP-CABLE | |
| 2 | 6D-7889 | [6] | SEAL-O-RING | |
| 3 | 6I-1418 | [4] | SPACER (8.2X12.7X28.7-MM THK) | |
| 4 | 6V-0852 | [7] | CAP-DUST | |
| 5 | 7K-1181 | [4] | STRAP-CABLE | |
| 6 | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT (MALE) | |
| | 6V-3965 | [1] | FITTING (QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 7 | 180-3178 | [1] | VALVE GP-RELIEF (TORQUE CONVERTER INLET) | |
| 8 | 197-4652 | [1] | VALVE-RELIEF (CLUTCH BACK PRESSURE) | |
| 9 | 214-2485 Y | [1] | SENSOR GP-SPEED (TORQUE CONVERTER OUTPUT) | |
| 10 | 234-5013 Y | [1] | SENSOR GP-TEMPERATURE (TRANSMISSION OIL) | |
| 10A. | 234-5013 Y | [1] | SENSOR GP-TEMPERATURE (TORQUE CONVERTER OIL) | |
| 11 | 236-6222 Y | [2] | SENSOR GP-SPEED (TRANSMISSION OUTPUT) | |
| 12 | 244-7772 Y | [6] | VALVE GP-MODULATING (TRANSMISSION CLUTCH, ECPC) | |
| 14 | 266-4180 | [1] | PLATE-SEPARATOR (TRANSMISSION) | |
| 15 | 276-4166 | [1] | VALVE AS-FLOW CONTROL (LUBRICATION) | |
| 16 | 285-9066 M | [12] | BOLT (M8X1.25X65-MM) | |
| 17 | 304-5687 | [1] | CONTROL GP-UNPROGRAMMED (TRANSMISSION) | |
| 18 | 304-9025 Y | [1] | VALVE GP-RELIEF (TRANSMISSION HYDRAULIC CONTROL) | |
| 19 | 316-9962 | [2] | SEAL-O-RING | |
| 20 | 345-2299 Y | [1] | HARNESS AS-CONTROL (TRANSMISSION) | |
| 21 | 345-2300 Y | [1] | HARNESS AS-TRANSMISSION | |
| 22 | 345-2309 | [1] | BRACKET AS | |
| | 8R-1496 | [4] | SPACER (10X20X29-MM THK) | |
| | 8T-3612 M | [4] | NUT-WELD (M8X1.25-THD) | |
| 23 | 130-5300 | [1] | CLIP | |
| 24 | 132-5789 | [5] | CLIP (LADDER) | |
| 25 | 142-2928 | [4] | LOCKNUT (4-40-THD) | |
| 26 | 183-3409 | [1] | PLUG AS | |
| | 9S-8002 | [1] | PLUG (7/16-20-THD) | |
| | 033-5853 | [1] | SEAL-O-RING | |
| 27 | 196-1185 Y | [1] | SENSOR GP-SPEED (ENGINE) | |
| 28 | 277-1873 | [1] | CLIP (LADDER) | |
| 29 | 149-9129 | [1] | CLIP (LOOP) | |
| 30 | 9M-8406 | [1] | CLIP (LOOP) | |
| 31 | 4P-7428 | [4] | CLIP (LADDER) | |
| 32 | 4P-7429 | [1] | CLIP (LADDER) | |
| 33 | 4P-7581 | [3] | CLIP (LADDER) | |
| 34 | 5S-1522 | [2] | RING-SNAP | |
| 35 | 6D-5801 | [8] | LOCKNUT (8-32-THD) | |
| 36 | 6V-2480 | [4] | SCREW (4-40X0.5-IN) | |
| 37 | 6V-5839 | [1] | WASHER (11X21X2.5-MM THK) | |
| 38 | 6V-8352 | [2] | SEAL-O-RING | |
| 39 | 7U-4892 | [8] | SCREW (8-32X0.75-IN) | |
| 40 | 8T-3647 M | [9] | BOLT (M8X1.25X80-MM) | |
| 41 | 8T-4136 M | [1] | BOLT (M10X1.5X25-MM) | |
| 42 | 8T-4189 M | [3] | BOLT (M8X1.25X20-MM) | |
| 43 | 8T-4200 M | [4] | BOLT (M8X1.25X16-MM) | |
| 44 | 8T-4224 | [34] | WASHER-HARD (8.8X16X2-MM THK) | |
| 45 | 8T-6912 M | [8] | BOLT (M8X1.25X50-MM) | |
| 46 | 8T-9655 | [8] | MOUNT-ISOLATION | |
| 47 | 9N-0869 | [4] | WASHER-HARD (8.8X25.5X2-MM THK) | |
| 48 | 8C-6354 | [1] | CAP-RECEPTACLE (ET CONNECTOR) | |
| 49 | 033-6028 | [1] | SEAL-O-RING | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft
2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y
3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y
4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder
5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve
6.Electrical parts: Wiring harness, Controller, Monitor
7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
Product Tags:
|
|
1961185 196-1185 Speed Sensor Excavator Electric Parts For 924G 924GZ 924H 924HZ Images
|
