• 176-8131 1768131 Spacer Excavator Spare Parts Fit For C4.4 312E 313F L

• Specification

Name	Spacer
Parts No	424-3431 424-3436
Machine Model	311C 312C 312E 312E L 313D
Category	Travel Motor
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Compatible models

• More other spacer parts fit for C A T machine

7Y4215 SPACER

311C, 313D2 LGP, 315C, 315D L, 316E L, 318B, 318C, 318D L, 318D2 L, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320B FM LL, 320B L, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320...

5I7697 SPACER

311, 311B, 311C, 311D LRR, 312B, 312C, 312C L, 312D, 312D L, 313D, 314C, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D F...

5I7550 SPACER

311, 311B, 311C, 311D LRR, 312, 312B, 312C, 312C L, 312D, 312D L, 313D, 314C, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320, 320 L, 320B, 320B L, 320C, 320C FM, 320C L, 320...

7Y1863 SPACER

315C, 315D L, 318C, 319C, 319D, 319D LN, 320 L, 320B, 320B FM LL, 320B L, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E,...

1416518 SPACER

312C, 312D, 312E, 312E L, 314E CR, 314E LCR, 315C, 315D L, 316E L, 318C, 318E L, 319C, 319D, 320C, 320E, 320E L, 320E LN, 320E LRR, 320E RR, 322C, 323D L, 323D LN, 323E L, 324D, 324D L, 324D LN, 324E,...

1141581 SPACER

318C, 318E L, 319C, 319D, 319D L, 319D LN, 320B, 320B L, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 320E LN,...

1719383 SPACER

318C, 318E L, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 320E LN, 320E LRR, 320...

2394384 SPACER

315D L, 318E L, 319D, 319D L, 319D LN, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 320E LN, 320E LRR, 320E RR, 321D LCR, 323D L, 323D LN, 323D2 ...

2489337 SPACER

14H, 14M, 16H, 16M, 314E CR, 314E LCR, 320E LN, 323E L, 324D, 324D FM, 324D FM LL, 324D L, 324D LN, 324E, 324E L, 324E LN, 325D, 325D FM, 325D L, 325D MH, 326D L, 329D, 329D L, 329D LN, 329E, 329E L

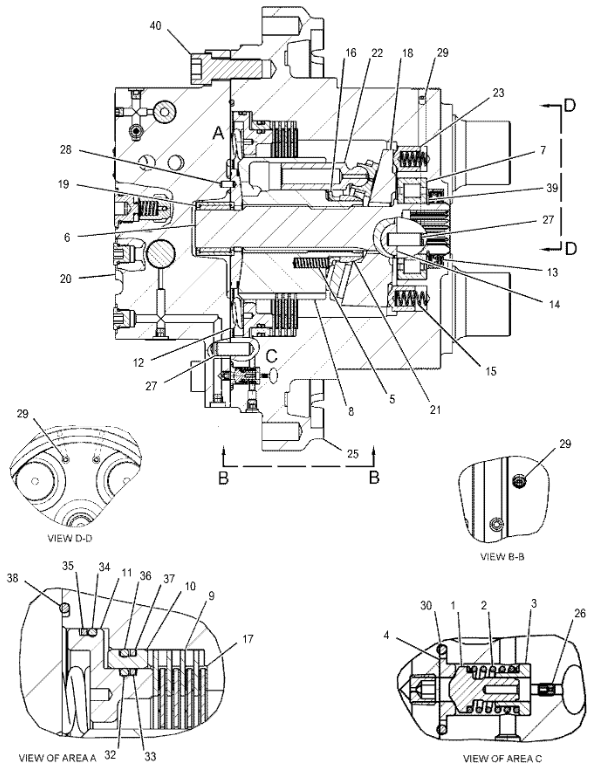

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
1	087-4742	[1]	VALVE
2	095-7380	[1]	SPRING
3	095-7382	[1]	RETAINER
4	096-1519	[1]	SEAT
5	165-2799	[9]	SPRING
6	165-5803	[1]	SHAFT
7	165-5804	[1]	BEARING-ROLLER
8	165-5811	[1]	BARREL AS
9	165-5814	[4]	PLATE-SEPARATOR
10	165-5816	[1]	GUIDE-PISTON
11	165-5817	[1]	PISTON-BRAKE
12	165-5818	[8]	SPRING
13	165-5826	[1]	SEAL-LIP TYPE
14	165-5828	[2]	KEY
15	165-5831	[2]	SPRING
16	176-8131	[1]	SPACER-SPECIAL
17	176-8573	[4]	PLATE-FRICTION
18	176-8579	[1]	PLATE-CAM
19	267-8084	[1]	BEARING-NEEDLE
20	349-9520 Y	[1]	VALVE GP-TRAVEL COUNTERBALANCE
21	353-5829	[1]	GUIDE-BALL
22	451-7530	[1]	PISTON AS
23	374-4171	[2]	PISTON
25	421-4384	[1]	BODY
26	421-4385	[1]	ORIFICE
27	085-9769	[4]	PIN
28	094-1875	[1]	DOWEL
29	094-1882	[7]	PLUG
30	095-1585	[1]	SEAL-O-RING
32	165-5819	[1]	SEAL-O-RING
33	165-5820	[1]	RING-BACKUP
34	165-5821	[1]	SEAL-O-RING
35	165-5822	[1]	RING-BACKUP
36	165-5823	[1]	SEAL-O-RING
37	165-5824	[1]	RING-BACKUP
38	1H-8278	[1]	SEAL-O-RING
39	8T-4240	[1]	RING-RETAINING
40	8T-4944 M	[9]	BOLT-SOCKET HEAD (M16X2X40-MM)
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
