• 1695599 169-5599 Planetary Carrier Excavator Swing Gear For 320C 320C FM 322C 322C FM

• Specification

Application	Excavator swing gear
Name	Planetary Carrier
Parts No	1695599 169-5599
Model	320C 320C FM 322C 322C FM 325C 325C FM
Delivery time	Stock for urgent delivery
Quality	Brand new, OEM quality
MOQ	1 PCS
Design	made in china
Means of transport	By sea/air, DHL FEDEX UPS TNT Express
Packing	As request or standard packing

• Applicable models

EXCAVATOR 320C 320C FM 322C 322C FM 325C 325C FM

• More carrier parts supplied to C A T machine​

1218139 CARRIER

M315, M315C, M316C, M318

8U5989 CARRIER-PLANETARY

206B, 212B, M315, M315C, M316C, M318, M318C, M318C MH, M320, M322C

1324344 CARRIER

M312, M313C

1324288 CARRIER-PLANETARY

M312, M313C

1550823 CARRIER

M312, M313C, M313D, M315, M315C, M315D, M315D 2, M316C, M316D, M317D 2

3756310 CARRIER-PLANETARY

M313C, M313D, M315C, M315D, M315D 2, M316C, M316D, M317D 2, M318C, M318D, M318D MH, M322C, M322D, M322D MH

1550823 CARRIER

M312, M313C, M313D, M315, M315C, M315D, M315D 2, M316C, M316D, M317D 2

1484749 CARRIER-PLANETARY

315C, 318B

1582457 CARRIER GP

317B LN, 318B

7Y1433 CARRIER

315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3...

7Y1432 CARRIER

315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3...

1550173 CARRIER GP

315B L, 317B LN, 318B

1719443 CARRIER

307C, 307D, 308C, 308D, 308E

1719439 CARRIER

307C, 307D, 308C, 308D, 308E

3074161 CARRIER

307C, 307D, 308C, 308D, 308E, 308E CR, 308E SR

1938429 CARRIER

304.5

1938428 CARRIER

304.5

2069479 CARRIER AS

302.5, 302.5C

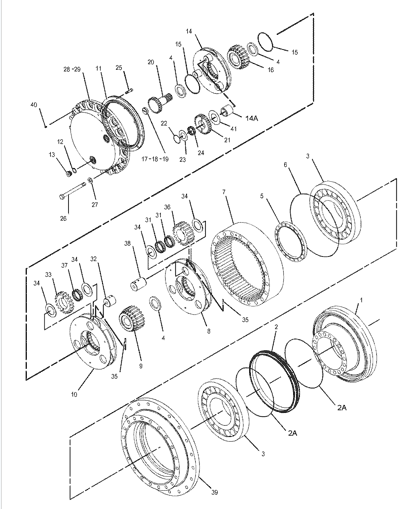

• Catalog parts list​

Pos.	Part No	Qty	Parts name	Comments
1	169-5586	[1]	HOUSING-MOTOR
2	207-1571	[1]	SEAL GP-DUO-CONE
2A.	163-7373	[2]	RING-TORIC
3	168-8452	[2]	BALL BEARING
4	7Y-0595	[3]	SPACER (58X79.6X6-MM THK)
5	169-5596	[1]	STOP
6	171-9298	[1]	SEAL-O-RING
7	191-2676	[1]	GEAR-RING (72-TEETH)
8	169-5599	[1]	CARRIER-PLANETARY
9	169-5590	[1]	GEAR-SUN (24-TEETH)
10	191-2571	[1]	CARRIER-PLANETARY
11	171-9387	[1]	GEAR-RING (64-TEETH)
12	7M-8485	[2]	SEAL-O-RING
13	3E-2338	[2]	PLUG-PIPE
14	191-2686	[1]	CARRIER AS
14A.	191-2687	[3]	RACE-BEARING
15	093-1731	[2]	RING-RETAINING
16	169-5589	[1]	GEAR-SUN (24-TEETH)
17	094-0578	[1]	PLATE (8-MM THK)
18	094-0579	[1]	PLATE (9-MM THK)
19	094-0580	[1]	PLATE (10-MM THK)
20	191-2683	[1]	GEAR-SUN (20-TEETH)
21	191-2684	[3]	GEAR-PLANETARY (21-TEETH)
22	096-0433	[3]	RING-RETAINING
23	191-2689	[3]	WASHER (34X70X1-MM THK)
24	191-2685	[3]	BEARING AS
25	9X-6032 M	[12]	BOLT-SOCKET HEAD (M10X1.5X30-MM)
26	179-8733 M	[16]	BOLT (M20X2.5X170-MM)
27	8T-4123	[16]	WASHER (3.62X5.75X0.375-MM THK)
28	199-4503	[1]	COVER
29	1U-8846 B		SEALANT-GASKET
31	191-2570	[6]	BEARING AS (CAGED ROLLER)
32	169-5601	[3]	SHAFT-PLANETARY
33	169-5592	[3]	GEAR-PLANETARY (23-TEETH)
34	094-1528 M	[12]	WASHER (53X84X1-MM THK)
35	095-0891	[6]	PIN-SPRING
36	169-5593	[3]	GEAR-PLANETARY (23-TEETH)
37	191-2569	[3]	BEARING AS (CAGED ROLLER)
38	169-5602	[3]	SHAFT-PLANETARY
39	169-5585	[1]	HOUSING
40	096-3216 M	[2]	SETSCREW-SOCKET (M12X1.75X12-MM)
41	191-2690	[3]	WASHER (42.3X70X1-MM THK)
	B		USE AS REQUIRED
	M		METRIC PART

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 6-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
