EXCAVATORS EC330B EC330C EC350E EC360B EC360C EC700B EC700BHR EC700C EC700CHR
- More other planet parts for Vo-lvo equipments
| VOE14516546 Planet carrier |
| EC80D, ECR58, ECR58D, ECR88, ECR88D |
| |
| VOE14516546 Planet carrier |
| EC80D, ECR58, ECR58D, ECR88, ECR88D |
| |
| VOE14623904 Planet carrier |
| EC380D, EC380DHR, EC380E |
| |
| VOE11716593 Planet gear kit |
| BL60, BL60B, BL61, BL61PLUS, BL70, BL70B, BL71, BL71PLUS |
| |
| VOE15047468 Planet gear kit |
| BL60, BL60B, BL61, BL61B, BL61PLUS, BL70, BL70B, BL71, BL71B, BL71PLUS |
| |
| RM13784095 Planet carrier |
| PF161 |
| |
| RM13784376 Planet carrier |
| PF161 |

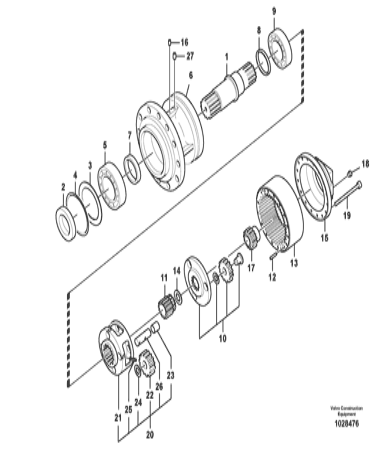

| Pos. | Part No | Qty | Parts name | Comments |
| | VOE14609494 | [1] | Swing gearbox | |
| 1 | VOE14596604 | [1] | Shaft | |
| 2 | VOE14596608 | [1] | Collar | |
| 3 | VOE14596607 | [1] | Plate | |
| 4 | VOE14596610 | [1] | Ring | |
| 5 | VOE14547261 | [1] | Bearing | |
| 6 | VOE14609495 | [1] | Case | |
| 7 | VOE14596605 | [1] | Collar | |
| 8 | VOE14596611 | [1] | Seal | |
| 9 | VOE14640028 | [1] | Bearing | |
| 10 | VOE14609496 | [1] | Planet Carrier | |
| 11 | VOE14596620 | [1] | Gear | |
| 12 | SA9324-21317 | [4] | Pin | |
| 13 | VOE14596613 | [1] | Gear | |
| 14 | VOE14596621 | [1] | Thrust washer | |
| 15 | VOE14596630 | [1] | Cover | |
| 16 | SA9415-43012 | [1] | Plug | |
| 17 | VOE14609499 | [1] | Gear | |
| 18 | SA9415-46052 | [1] | Plug | |
| 19 | VOE993162 | [16] | Hex. socket screw | |
| 20 | VOE14596614 | [1] | Planet carrier | |
| 21 | VOE14596615 | [1] | Planet carrier | |
| 22 | VOE14596616 | [4] | Gear | |
| 23 | VOE14596617 | [4] | Bushing | |
| 24 | VOE14596618 | [4] | Washer | |
| 25 | VOE952004 | [4] | Spring pin | |
| 26 | VOE14596619 | [4] | Pin | |
| 27 | SA9415-43032 | [1] | Plug | |
Hydraulic pump and valve parts are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
1. The pump and valve parts are built to fit to the genuine drive gearbox system.
2. The pump and valve parts are supplied strictly according to the genuine parts catalog.
3. All the pump and valve components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of pump parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
