• 0816210 Valve Plate HITACHI Excavator Spare Parts Fit For ZX270-3 M5X180

• Specification

Name	Valve Plate
Parts No	0816210
Machine Model	ZR950JC ZX270 ZX280-5G ZX290LC-5B ZX330-3
Category	Oil Motor
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Compatible models

• More other plate parts fit for HITACHI machine

4269475 PLATE

EX100-2, EX100-2m, EX100-3, EX100-3C, EX100-3m, EX100-5, EX100-5 JPN, EX100M-2, EX100M-2m, EX100M-3, EX100M-3m, EX100M-5, EX100WD-2, EX100WD-3, EX100WD-3C, EX1100-3, EX12, EX120-2, EX120-2m, EX120-3, ...

9116810150 PLATE; THRUST

135C RTS JD, 225CL RTS JD, 270C LC JD, BX70, BX70D, CG45, CP215, EG40R, EX100, EX100-2, EX100-3, EX100-3C, EX100-5, EX100-5 JPN, EX100M, EX100M-2, EX100M-3, EX100M-5, EX100W, EX100WD, EX100WD-2, EX100...

4279721 PLATE;FRICTION

EX100-5, EX12, EX120-5, EX135UR, EX135UR-5, EX135US-5, EX135USR, EX140US-5, EX15, EX17U, EX17UNA, EX200-5 JPN, EX20U-3, EX20UR, EX20UR-2, EX20UR-2C, EX20UR-3, EX22, EX225USR(LC), EX25, EX30, EX30UR, E...

4361294 PLATE;THRUST

CHR70, EX100-5, EX100-5 JPN, EX100M-5, EX120-5, EX120-5 JPN, EX120-5HG, EX120-5LV JPN, EX120-5X, EX120-5Z, EX120SS-5, EX125WD-5, EX130H-5, EX130H-5 JPN, EX130K-5, EX135UR, EX135UR-5, EX135US-5, EX135U...

4361293 PLATE;THRUST

CHR70, EX100-5, EX100-5 JPN, EX100M-5, EX120-5, EX120-5 JPN, EX120-5HG, EX120-5LV JPN, EX120-5X, EX120-5Z, EX120SS-5, EX125WD-5, EX130H-5, EX130H-5 JPN, EX130K-5, EX135UR, EX135UR-5, EX135US-5, EX135U...

0417202 PLATE

EX100, EX100-2, EX100-5, EX120, EX120-2, EX120-5 JPN, EX150, EX160WD, EX200, EX200-2, EX200-3, EX200-5 JPN, EX220, EX220-2, EX220-5 JPN, EX270, EX300, EX300-5, EX400-5, EX60, EX60-2, EX60-3, EX60-5(LC...

6016775 PLATE

EX225USR(LC), EX225USRK(LC)

0695602 PLATE

EX150LC-5

8084092 PLATE;SLIDE

EX200-5 JPN, ZX200, ZX225USR

4472398 PLATE

EX200-5 JPN, ZX200, ZX225USR

9747532 PLATE

EX100-5, EX120-5 JPN, EX135USR, EX200-5 JPN, EX225USR(LC), EX300-3, EX60-3, EX60-5(LC)

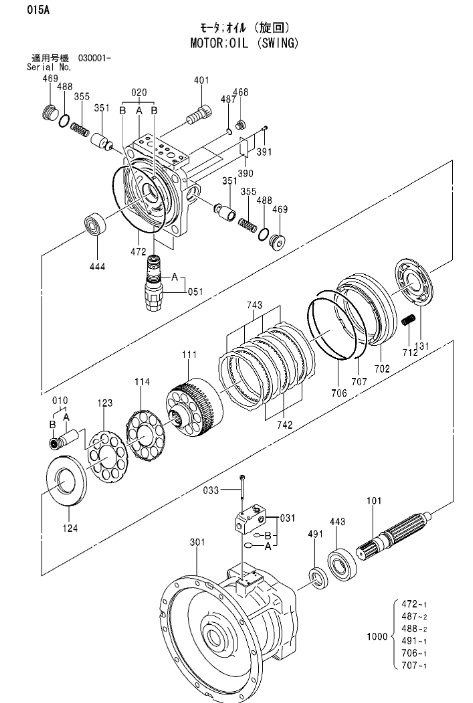

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
	4621174	[1]	MOTOR;OIL
10	816201	[1]	PISTON ASS'Y
010A.	+++++++	[9]	PISTON
010B.	+++++++	[9]	SHOE
20	816202	[1]	CASING ASS'Y
020A.	+++++++	[1]	CASING
020B.	+++++++	[2]	PIN
31	960201	[1]	VALVE
31A.	417304	[1]	O-RING
31B.	179521	[1]	O-RING
33	218824	[3]	BOLT;SOCKET
51	4654849	[2]	VALVE;RELIEF
051A.	A811030	[2]	O-RING
101	816205	[1]	SHAFT
111	816206	[1]	CYL.
114	816207	[1]	SPRING;PLATE
123	816208	[1]	RETAINER
124	816209	[1]	PLATE
131	816210	[1]	PLATE;VALVE
301	976202	[1]	CASING
351	803007	[2]	PLUNGER
355	803008	[2]	SPRING
390	931501	[1]	PLATE
391	625509	[2]	PIN
401	365318	[4]	BOLT;SOCKET
443	816212	[1]	BRG.;ROL
444	872302	[1]	BRG.;ROL
468	629404	[2]	PLUG
469	803009	[2]	PLUG
472	401202	[1]	O-RING	I 0976204
472	976204	[1]	O-RING
487	957366	[2]	O-RING
488	984614	[2]	O-RING
491	353318	[1]	SEAL;OIL
702	816214	[1]	PISTON
706	365330	[1]	O-RING
707	308623	[1]	O-RING
712	747307	[20]	SPRING;BRAKE
742	816215	[3]	PLATE;FRICTION
743	816216	[4]	PLATE
1000	816217	[1]	KIT;SEAL	I 0976205
1000	976205	[1]	KIT;SEAL

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
