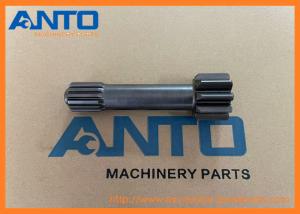

- 39Q4-42290 39Q4-42291 Travel Reduction Gear HYUNDAI Excavator Spare Parts For R140LC-9
| Name | Sun Gear |
| Parts No | 39Q4-42290 39Q4-42291 |
| Machine Model | R125LCR-9A R140LC9 R140LC9A R140LC9S |
| Category | Travel Reduction Gear |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
9-SERIES CRAWLER EXCAVATOR R125LCR-9A R140LC9 R140LC9A R140LC9S R140LC9V R145CR9 R145CR9A RB140LC9S RD140LC9
F-SERIES CRAWLER EXCAVATOR HX140L Hyundai
- More other gear parts fit for HYUNDAI machine
| 3929027 GEAR-CRANKSHAFT |
| 100D-7, 33HDLL, H70, H80, HDF35A-2, HDF50A, HL720-3C, HL730-7, HL7303C, HL730TM3C, HL730TM7, HL740-3, HL740-3ATM, HL740-7, HL740-7S, HL740-9B, HL740-9S, HL740-9SB, HL740TM-3, HL740TM-3A, HL740TM-7, HL... |
| |
| 3905427 GEAR-FLYWHEEL RING |
| 100D-7, 110D-7A, 110D-7E, 110D-9, 180DE, 250D-9, 250DE, 33HDLL, 42HDLL, HL17C, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7303C, HL730TM-9, HL730TM-9A, HL730TM3C, HL730TM7,... |
| |
| 39Q4-42220 GEAR-SUN 2 |
| HX140L, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R145CR9, R145CR9A, RB140LC9S, RD140LC9 |
| |
| 39Q4-42250 GEAR-PLANETARY 1 |
| HX140L, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R145CR9, R145CR9A, RB140LC9S, RD140LC9 |
| |
| ZUAC-00707 GEAR-CRANKSHAFT |
| HX140L, HX160L, R125LCR-9A, R140LC9A, R145CR9A, R160LC9A, R180LC9A |
| |
| ZUAC-00375 GEAR-INJECTION PUMP |
| HX140L, HX160L, R125LCR-9A, R140LC9A, R145CR9A, R160LC9A, R180LC9A |
| |
| ZUAC-00517 GEAR-IDLER |
| HX140L, HX160L, R125LCR-9A, R140LC9A, R145CR9A, R160LC9A, R180LC9A |
| |
| ZUAC-00521 GEAR-CAMSHAFT |
| HX140L, HX160L, R125LCR-9A, R140LC9A, R145CR9A, R160LC9A, R180LC9A |

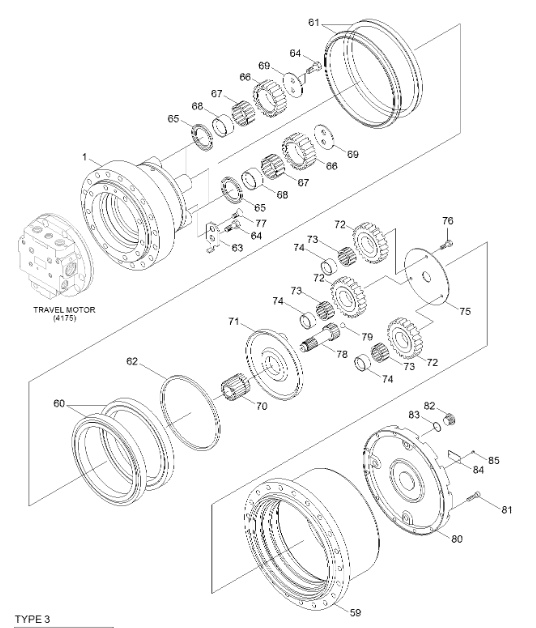

| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | TRAVEL MOTOR ASSY | SEE 4175 |
| N*-2. | 39Q4-42100 | [1] | T/REDUCTION GEAR | |
| N*-2. | 39Q4-42101 | [1] | T/REDUCTION GEAR | |
| N*-2. | 39Q4-42102 | [1] | T/REDUCTION GEAR | |
| 59 | 39Q4-42110 | [1] | GEAR-RING | |
| 60 | 39Q4-42120 | [2] | BEARING-ANG.BALL | |
| 61 | 39Q4-42130 | [2] | SEAL ASSY-FLOATING | |
| 62 | 39Q4-42140 | [1] | RING-NUT | |
| 63 | 39Q4-42151 | [1] | PLATE-LOCK | |
| 64 | S017-100166 | [9] | BOLT-HEX | |
| 65 | 39Q4-42170 | [4] | PLATE-THRUST 2 | |
| 66 | 39Q4-42180 | [4] | GEAR-PLANETARY 2 | |
| 67 | 39Q4-42190 | [4] | BEARING-NEELDLE 2 | |
| 68 | 39Q4-42200 | [4] | RACE-INNER 2 | |
| 69 | 39Q4-42210 | [4] | WASHER-THRUST 2 | |
| 70 | 39Q4-42220 | [1] | GEAR-SUN 2 | |
| K71. | 39Q4-42240 | [1] | CARRIER 1 | |
| K72. | 39Q4-42250 | [3] | GEAR-PLANETARY 1 | |
| K73. | 39Q4-42260 | [3] | BEARING-NEEDLE 1 | |
| K74. | 39Q4-42270 | [3] | RACE-INNER 1 | |
| K75. | 39Q4-42280 | [1] | PLATE-THRUST 1 | |
| K76. | S017-080166 | [3] | BOLT-HEX | |
| 77 | 39Q4-42330 | [1] | SCREW | |
| 78 | 39Q4-42290 | [1] | GEAR-SUN 1 | |
| 79 | 39Q4-42300 | [1] | BALL-STEEL | |
| 80 | 39Q4-42310 | [1] | COVER | |
| 81 | S109-100256 | [12] | BOLT-SOCKET | |
| 82 | P220-110203 | [3] | PLUG-HEX | |
| K83. | S631-014001 | [3] | O-RING | |
| N84. | 39Q4-42320 | [1] | NAME PLATE | |
| 85 | 39Q6-41800 | [2] | RIVET | |
| 86 | 39Q4-42340 | [3] | CAP-RUBBER | |
| 87 | 39Q4-42350 | [12] | CAP-RUBBER | |
| K. | 39Q4-42230 | [1] | CARRIER ASSY KIT 1 | SEE ILLUST |
| N. | @ | [AR] | NOT SUPPLIED PARTS | |
| N*-2. | 39Q4-42100 | [1] | T/REDUCTION GEAR | |
| 59 | 39Q4-42110 | [1] | GEAR-RING | |
| 60 | 39Q4-42120 | [2] | BEARING-ANG.BALL | |
| 61 | 39Q4-42130 | [2] | SEAL ASSY-FLOATING | |
| 62 | 39Q4-42140 | [1] | RING-NUT | |
| 63 | 39Q4-42151 | [1] | PLATE-LOCK | |
| 64 | S017-100166 | [9] | BOLT-HEX | |
| 65 | 39Q4-42170 | [4] | PLATE-THRUST 2 | |
| 66 | 39Q4-42180 | [4] | GEAR-PLANETARY 2 | |
| 67 | 39Q4-42190 | [4] | BEARING-NEELDLE 2 | |
| 68 | 39Q4-42200 | [4] | RACE-INNER 2 | |
| 69 | 39Q4-42210 | [4] | WASHER-THRUST 2 | |
| 70 | 39Q4-42220 | [1] | GEAR-SUN 2 | |
| K71. | 39Q4-42240 | [1] | CARRIER 1 | |
| K72. | 39Q4-42250 | [3] | GEAR-PLANETARY 1 | |
| K73. | 39Q4-42260 | [3] | BEARING-NEEDLE 1 | |
| K74. | 39Q4-42270 | [3] | RACE-INNER 1 | |
| K75. | 39Q4-42280 | [1] | PLATE-THRUST 1 | |
| K76. | S017-080166 | [3] | BOLT-HEX | |
| 77 | 39Q4-42330 | [1] | SCREW | |
| 78 | 39Q4-42290 | [1] | GEAR-SUN 1 | |
| 79 | 39Q4-42300 | [1] | BALL-STEEL | |
| 80 | 39Q4-42310 | [1] | COVER | |
| 81 | S109-100256 | [12] | BOLT-SOCKET | |
| 82 | P220-110203 | [3] | PLUG-HEX | |
| K83. | S631-014001 | [3] | O-RING | |
| N84. | 39Q4-42320 | [1] | NAME PLATE | |
| 85 | 39Q6-41800 | [2] | RIVET | |
| K. | 39Q4-42230 | [1] | CARRIER ASSY KIT 1 | SEE ILLUST |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
