• 39Q812251 Sun Gear HYUNDAI Excavator Spare Parts For R300LC-9S

• Specification

Name	Sun Gear
Parts No	39Q812251
Machine Model	R290LC9 R290LC9MH R300LC9A R300LC9S
Category	Swing Reduction Gear
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Compatible models

• More other gear parts fit for HYUNDAI machine

3905427 GEAR-FLYWHEEL RING

100D-7, 110D-7A, 110D-7E, 110D-9, 180DE, 250D-9, 250DE, 33HDLL, 42HDLL, HL17C, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7303C, HL730TM-9, HL730TM-9A, HL730TM3C, HL730TM7,...

3918776 GEAR-CRANKSHAFT

180DE, 250D-9, 250DE, 42HDLL, HL760, HL760-3, HL760-3ATM, HL760-9S, HL770-7, HL770-7A, HL770-9, HL770-9A, HL770-9S, HX330L, HX380L, HX430L, R290LC3, R290LC7, R300LC9S, R305LC7, R320LC3, R320LC7, R320L...

4893386 GEAR-CRANKSHAFT

R290LC7A

XKBH-01825 GEAR-INJECTION PUM

R300LC9SH, R330LC9SH, R380LC9SH, R430LC9SH

XKBH-01801 GEAR-CAM SHAFT

R300LC9SH, R330LC9SH, R380LC9SH, R430LC9SH

XKBH-01844 GEAR ASSY-IDLER C

R300LC9SH, R330LC9SH, R380LC9SH, R430LC9SH

XKBH-01846 GEAR-IDLER C

R300LC9SH, R330LC9SH, R380LC9SH, R430LC9SH

XKBH-01926 GEAR ASSY-DRIVEN

R300LC9SH, R330LC9SH, R380LC9SH, R430LC9SH

XKBH-01937 GEAR ASSY-IDLER

R300LC9SH, R330LC9SH, R380LC9SH, R430LC9SH

XKAG-00181 GEAR-JOINT

HX330L, HX380L, HX430L, HX480L, HX520L, R330LC9A, R380LC9A, R430LC9A, R480C9MH, R480LC9, R480LC9A, R520LC9, R520LC9A

XKAG-00182 GEAR-DRIVEN

HX330L, HX380L, HX430L, HX480L, HX520L, R330LC9A, R380LC9A, R430LC9A, R480C9MH, R480LC9, R480LC9A, R520LC9, R520LC9A

31QA-31120 GEAR PUMP

HX330L, HX380L, HX430L, R380LC9A, R430LC9A

39Q8-12211 GEAR-PLANETARY NO.2

HX300L, HX330L, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH

39Q8-12110 GEAR RING

HX300L, HX330L, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH

HHI28-WP26 GEAR-PINION

R290LC3H

HHI28-WP09-2 GEAR-SUN(1)

R290LC3H, R320LC3

HHI28-WP08 GEAR-PLANETARY(1)

R290LC3H, R320LC3

HHI28-WP07 GEAR-RING(1)

R290LC3H, R320LC3

HHI28-WP06-2 GEAR-SUN(2)

R290LC3H, R320LC3

HHI28-WP05 GEAR-PLANETARY(2)

R290LC3H, R320LC3

HHI28-WP04 GEAR-RING(2)

R290LC3H, R320LC3

718156 GEAR PUMP

R290LC3H

3919381 GEAR & HUB

R290LC

6343700363 GEAR-PLANET(1)

R290LC, R290LC3, R290LC3H, R290LC3LL, R320LC, R320LC3

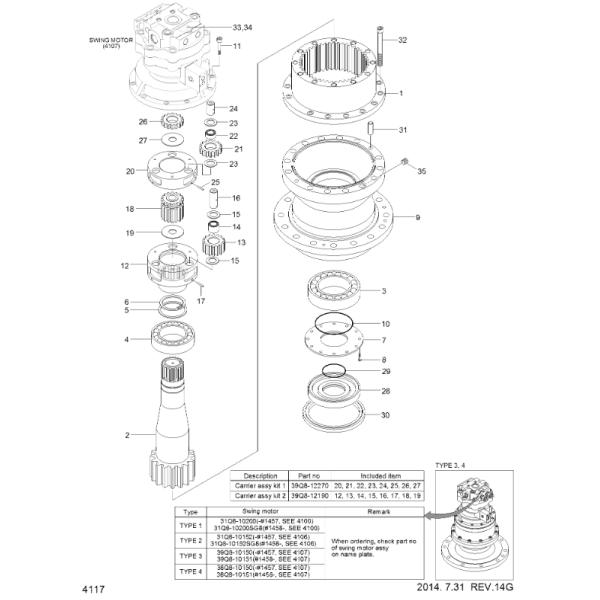

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
*-2.	39Q8-12100	[1]	SWING REDUCTION GEAR	SEE 4107
*-2.	39Q8-12101	[1]	SWING REDUCTION GEAR	SEE 4107
1	39Q8-12110	[1]	GEAR RING
2	39Q8-12120	[1]	SHAFT-DRIVE
3	39Q8-12130	[1]	BEARING-SPH.ROLLER
4	39Q8-12140	[1]	BEARING-SPH.ROLLER
5	39Q8-12150	[1]	PLATE-THRUST
6	39Q8-12160	[1]	RING-SNAP
7	39Q8-12170	[1]	COVER
8	S017-120306	[12]	BOLT-HEX
9	39Q8-12180	[1]	CASING
10	S632-290001	[1]	O-RING
11	S109-100306	[12]	BOLT-SOCKET
K12.	39Q8-12201	[1]	CARRIER NO.2
K13.	39Q8-12211	[4]	GEAR-PLANETARY NO.2
K14.	39Q8-12220	[4]	BEARING-NEEDLE NO.2
K15.	39Q8-12231	[8]	WASHER-THRUST NO.2
K16.	39Q8-12240	[4]	PIN-CARRIER NO.2
K17.	S472-910404	[4]	PIN-SPRING
K18.	39Q8-12251	[1]	GEAR-SUN NO.2
K19.	39Q8-12261	[1]	PLATE-THRUST NO.2
K20.	39Q8-12281	[1]	CARRIER NO.1
K21.	39Q8-12291	[3]	GEAR-PLANETARY NO.1
K22.	39Q8-12300	[3]	BEARING-NEEDLE NO.1
K23.	39Q8-12311	[6]	WASHER-THRUST NO.1
K24.	39Q8-12320	[3]	PIN-CARRIER NO.1
K25.	S472-800404	[3]	PIN-SPRING NO.1
K26.	39Q8-12331	[1]	GEAR-SUN NO.1
K27.	39Q8-12341	[1]	PLATE-THRUST NO.1
28	39Q8-12350	[1]	SLEEVE
29	S632-140001	[1]	O-RING
30	39Q6-12350	[1]	SEAL-OIL
31	39Q6-41450	[2]	PIN-PARALLEL
32	S109-18050D	[14]	BOLT-SOCKET
33	39Q8-12360	[1]	NAME PLATE
34	39Q6-41800	[2]	RIVET
35	P220-430204	[1]	PLUG-HEX
K.	39Q8-12190	[1]	CARRIER ASSY NO.2	SEE ILLUST
K.	39Q8-12270	[1]	CARRIER ASSY NO.1	SEE ILLUST
