• 11NA71041 Fuel Water Separator HYUNDAI Excavator Spare Parts For R140LC-9

• Specification

Name	Fuel Water Separator
Parts No	11NA71041
Machine Model	R140LC9 R160LC9 R180LC9 R210LC9
Category	Fuel System(Without Rrefilter)
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Compatible models

• More other fuel water separator parts fit for HYUNDAI machine

11EM-21051 ELEMENT-SAFETY

100D-7, 110D-7E, 110DE, HL730-7, HL730-7A, HL730TM7, HL730TM7A, HL740-7, HL740-7S, HL740TM-7, HL757-7, HL757-7S, HL757TM7, R140LC-7, R140W7, R160LC7, R170W7, R180LC7, R200W3, R200W7, R210LC7, R210LC7A...

11LB-20310 ELEMENT ASSY-F/FILTER

100D-7, 35D-7, 35D-9S, 35DE, 35DS-7, 35DS-7E, 50DE, 50DEACE, 50DF, 50DS-7E, 80D-7, 80DE, 80DEACE, HDF50-7, HDF50-7S, HL760-7, HL770-7, HL780-9S, R110-7, R140LC-7, R140LC9, R140LC9S, R140W7, R140W9, R1...

31E3-0018 ELEMENT-LINE FILTER

100D-7, 110D-7A, 110D-7E, 110D-9, 110DE, 33HDLL, 42HDLL, 50D-7A, 50D-7K, 50D-9, 50DE, 50DEACE, 80D-9, 80DE, 80DEACE, HL25C, HL35C, HL720-3, HL720-3C, HL730-7, HL730-9S, HL730-9SB, HL7303, HL7303C, HL7...

11Q8-20320 ELEMENT-PRIMARY

180D-9, 180DE, 250DE, HL740-9, HL740TM-9, HL757-9, HL757-9S, HL757-9SB, HL757TM-9, HL760-9, HL760-9S, HL760-9SB, R290LC9, R290LC9MH, R320LC9

11Q8-20310 ELEMENT-SAFETY

180D-9, 180DE, 250DE, HL740-9, HL740TM-9, HL757-9, HL757-9S, HL757-9SB, HL757TM-9, HL760-9, HL760-9S, HL760-9SB, R290LC9, R290LC9MH, R320LC9

31EE-02110 ELEMENT

15D, 15D-9, 15D-9S, 15G-7M, 15L-7M, 15LC-7M, 20D-7E, 20DF, 20DT, 22D-9, 22D-9E, 22D-9T, 25G-7M, 25GC-7A, 25GC-7M, 25GC-7S, 25L-7A, 25L-7M, 25LC-7A, 25LC-7M, 25LC-7S, 25LF, 35D-9, 35D-9K, 35D-9S, 50D-9...

11N6-27030 ELEMENT-SAFETY

HL730-9, HL730-9S, HL730-9SB, HL730TM-9, HL740-9B, HL740-9S, HL740-9SB, HL757-9SM, HW140, HW210, HX220NL, HX235L, R140LC9, R140LC9S, R140W9, R140W9S, R160LC9, R160LC9S, R170W9, R170W9S, R180LC9, R180L...

11N6-27040 ELEMENT-PRIMARY

HL730-9, HL730-9S, HL730-9SB, HL730TM-9, HL740-9B, HL740-9S, HL740-9SB, HL757-9SM, HW140, HW210, HX220NL, HX235L, R140LC9, R140LC9S, R140W9, R140W9S, R160LC9, R160LC9S, R170W9, R170W9S, R180LC9, R180L...

11N8-22150 ELEMENT-INNER

HL740-7A, HL740TM-7A, HL757-7A, HL757TM7A, R290LC7H, R300LC7, R305LC7, R320LC7, R320LC7A, R360LC7, R370LC7

11N7-10020 ELEMENT

HW140, HW210, HX180L, HX220L, HX220NL, HX235L, HX260L, R125LCR-9A, R140LC9A, R140W9, R140W9A, R145CR9A, R160LC9A, R160W9A, R170W9, R180LC9A, R180W9A, R200W7

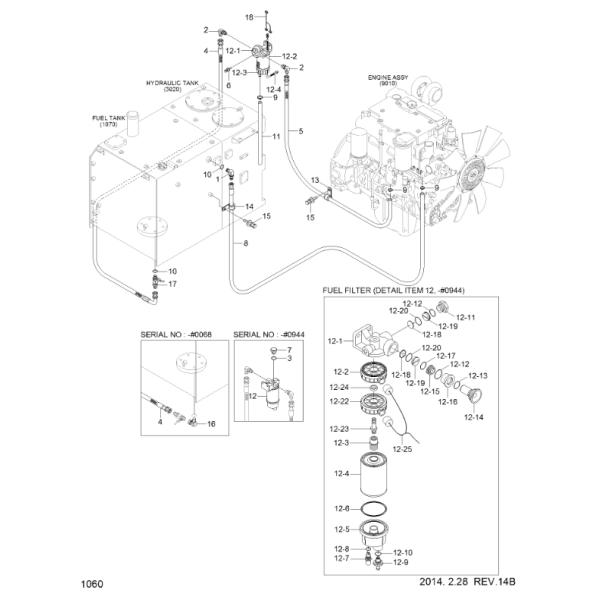

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
1	P020-110003	[1]	ELBOW-90
2	11N8-50060	[2]	ELBOW-90
3	S631-014001	[1]	O-RING
4	11Q4-54010	[1]	HOSE ASSY
4	11N6-53020	[1]	HOSE-FUEL
5	11N8-50040	[1]	HOSE
6	S037-103026	[2]	BOLT-W/WASHER
7	P220-110102	[1]	PLUG-HEX
8	11N8-57060	[1]	HOSE-FUEL
9	S520-020000	[3]	CLAMP-HOSE
10	S631-018001	[2]	O-RING
11	11M8-50030	[1]	HOSE ASSY
12	11NA-71001	[1]	FUEL FILTER & W/S ASSY	SING F/WARMER
12	11NA-73000	[1]	FUEL FILTER & W/S ASSY	DUAL F/WARMER
12-1.	11NA-71010	[1]	HEAD-FILTER
12-2.	11NA-71020	[1]	HEATER-FUEL
12-3.	11NA-71030	[1]	CONNECTOR
12-4.	11NA-71041	[1]	ELEMENT ASSY
12-5.	11NA-71050	[1]	BOWL-CLEAR
12-6.	11NA-71060	[1]	O-RING
12-7.	11NA-71070	[1]	SENSOR
12-8.	11NA-71080	[1]	O-RING
12-9.	11NA-71090	[1]	VALVE-SCREW
12-10.	11NA-71100	[1]	O-RING
N12-11.	11NA-71110	[1]	PLUG-SCREW
N12-12.	11NA-71120	[2]	O-RING
N12-13.	11NA-71130	[1]	O-RING
N12-14.	11NA-71140	[1]	PUMP-BODY PRIMING
N12-15.	11NA-71150	[1]	PUMP-HEAD
N12-16.	11NA-71160	[1]	HOLDER
N12-17.	11NA-71170	[1]	O-RING
N12-18.	11NA-71180	[2]	PLATE-VALVE
N12-19.	11NA-71190	[2]	FRAME-VALVE
N12-20.	11NA-71200	[2]	O-RING
12-22.	11NA-71020	[1]	HEATER-FUEL	DUAL F/WARMER
12-23.	11Q6-50100	[1]	CONNECTOR	DUAL F/WARMER
12-24.	11Q6-50110	[1]	SPACER	DUAL F/WARMER
12-25.	21Q8-23200	[1]	HARNESS-FUEL WARMER	DUAL F/WARMER
12	11QA-71000	[1]	FUEL FILTER ASSY	SING F/WARMER
12	11QA-73000	[1]	FUEL FILTER ASSY	DUAL F/WARMER
12-1.	11QA-71010	[1]	HEAD ASSY
12-2.	11QA-71040	[1]	ELEMENT ASSY
12-3.	11QA-71050	[1]	BOWL ASSY	SING F/WARMER
12-3.	11QA-71030	[1]	BOWL ASSY	DUAL F/WARMER
12-4.	11QA-71020	[1]	WIF SENSOR ASSY
13	S593-000802	[1]	CLIP-HARNESS
14	S543-200002	[1]	CLAMP-TUBE
15	S037-102026	[2]	BOLT-W/WASHER
16	11Q4-50030	[1]	ELBOW-90
17	11Q4-50010	[1]	VALVE-FUEL CUT
17-1.	S631-018004	[1]	O-RING	NOT SHOWN
18	21QB-23500	[1]	HARNESS FUEL WARMER	DUAL F/WARMER

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
