• 201-26-71130 2012671130 Carrier Support For KOMATSU PC60 PC70 PC75 PC75R PC75UD PC75US

• ​Specification

• Compatible models

CRAWLER CARRIERS CD60R
EXCAVATORS PC60 PC70 PC75 PC75R PC75UD PC75US PC75UU PC78US PW75 PW75R
MOBILE CRUSHERS AND RECYCLERS BR500JG
OTHER BA100 Komatsu

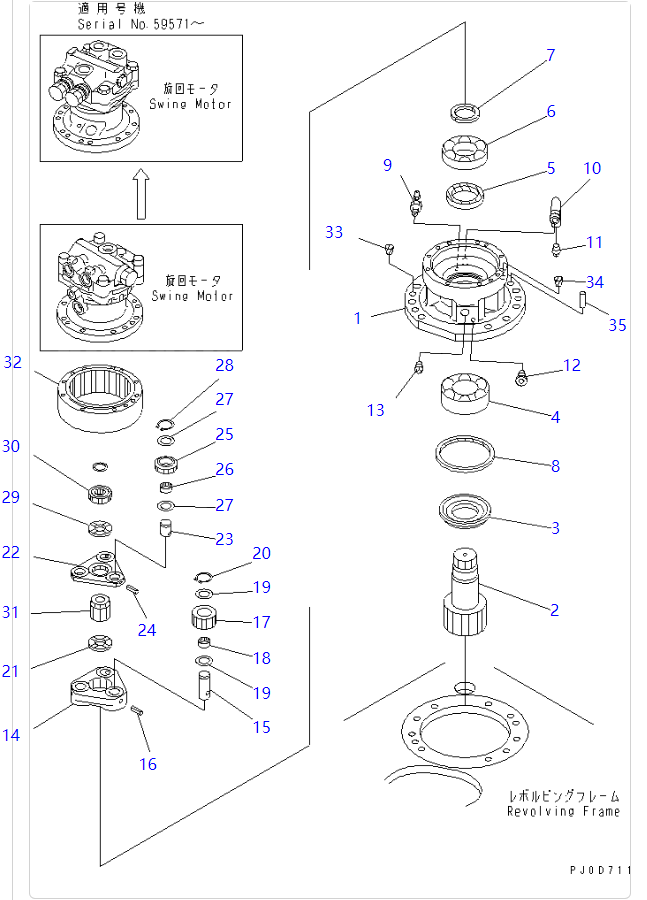

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
	201-26-00130	[1]	SWING MACHINERY A.,(FOR STANDARD) Komatsu	64.94 kg.
			["SN: 59571-UP"] |$4.
	201-26-00060	[1]	SWING MACHINERY A.,(FOR STANDARD) Komatsu China
			["SN: 52374-59570"] |$5.
	201-26-00040	[1]	SWING MACHINERY A.,(FOR STANDARD) Komatsu	79.01 kg.
			["SN: 45001-52373"] |$6.
	201-26-00090	[1]	SWING MACHINERY A. Komatsu China
			["SN: 45001-UP"] |$8.
1.	201-26-71113	[1]	CASE Komatsu	20.5 kg.
			["SN: 54161-UP"]
1.	201-26-71112	[1]	CASE Komatsu China
			["SN: 52374-54160"]
1.	201-26-71111	[1]	CASE Komatsu China
			["SN: 45001-52373"]
2.	201-26-71140	[1]	SHAFT Komatsu	6.18 kg.
			["SN: 45001-UP"]
3.	201-26-71261	[1]	PLATE Komatsu	0.56 kg.
			["SN: 53993-UP"]
3.	201-26-71260	[1]	PLATE Komatsu	0.56 kg.
			["SN: 45001-53992"] analogs:["2012671261"]
4.	201-26-71210	[1]	BEARING Komatsu	2.073 kg.
			["SN: 45001-UP"]
5.	07012-00065	[1]	SEAL,OIL Komatsu	0.062 kg.
			["SN: 45001-UP"]
6.	201-26-62320	[1]	BEARING Komatsu China
			["SN: 45001-UP"] analogs:["890001448"]
7.	201-26-71250	[1]	SPACER Komatsu China
			["SN: 45001-UP"] analogs:["890001449"]
8.	07145-00125	[1]	SEAL,OIL Komatsu China	0.07 kg.
			["SN: 45001-UP"]
9.	07020-00900	[1]	FITTING,GREASE Komatsu	0.01 kg.
			["SN: 45001-UP"] analogs:["0700000900", "M012443000109", "R0702000900"]
10.	21W-26-41310	[1]	PIPE Komatsu China
			["SN: 59571-UP"]
10.	201-26-62420	[1]	PIPE Komatsu China
			["SN: 45001-59570"] analogs:["890001452"]
11.	07042-30312	[1]	PLUG Komatsu China
			["SN: 45001-UP"] analogs:["890001453", "0704220312"]
12.	07029-00000	[1]	VALVE Komatsu	0.09 kg.
			["SN: 45001-UP"] analogs:["6127613890"]
13.	07042-00415	[1]	PLUG Komatsu	0.056 kg.
			["SN: 45001-UP"]
14.	201-26-71130	[1]	CARRIER Komatsu	1.61 kg.
			["SN: 45001-UP"]
15.	201-26-71230	[3]	SHAFT Komatsu	0.27 kg.
			["SN: 45001-UP"]
16.	20S-26-71250	[3]	PIN Komatsu China
			["SN: 45001-UP"] analogs:["890001458"]
17.	201-26-71180	[3]	GEAR Komatsu	0.54 kg.
			["SN: 45001-UP"]
18.	201-26-71290	[3]	BEARING Komatsu	0.1 kg.
			["SN: 45001-UP"]
19.	201-26-71270	[6]	WASHER,THRUST Komatsu	0.011 kg.
			["SN: 45001-UP"]
20.	04064-02512	[3]	RING,SNAP Komatsu	0.002 kg.
			["SN: 45001-UP"]
21.	201-26-71240	[1]	WASHER,THRUST Komatsu	0.32 kg.
			["SN: 45001-UP"]
22.	201-26-71121	[1]	CARRIER Komatsu	0.65 kg.
			["SN: 52374-UP"]
22.	201-26-71120	[1]	CARRIER Komatsu China
			["SN: 45001-52373"]
23.	201-26-71220	[3]	SHAFT Komatsu	0.12 kg.
			["SN: 45001-UP"]
25.	201-26-71160	[3]	GEAR Komatsu	0.15 kg.
			["SN: 45001-UP"]
26.	424-15-12580	[3]	BEARING Komatsu China
			["SN: 45001-UP"] analogs:["890001468"]
30.	201-26-71150	[1]	GEAR Komatsu	0.19 kg.
			["SN: 45001-UP"]
31.	201-26-71171	[1]	GEAR Komatsu	0.45 kg.
			["SN: 52374-UP"] analogs:["2012671170"]
31.	201-26-71170	[1]	GEAR Komatsu	0.45 kg.
			["SN: 45001-52373"] analogs:["2012671171"]
32.	201-26-71190	[1]	GEAR,RING Komatsu	6.6 kg.
			["SN: 45001-UP"]
33.	07049-01620	[2]	PLUG Komatsu	0.002 kg.
			["SN: 45001-UP"]
34.	07049-02025	[4]	PLUG Komatsu	0.002 kg.
			["SN: 54161-UP"]
35.	04020-01638	[2]	PIN Komatsu	0.064 kg.
			["SN: 45001-UP"]

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .

• Product Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance
