• 07281-01659 07281-01589 234-977-6230 Clamp KOMATSU Excavator Spare Parts For NT-855-1D

• Specification

Name	Clamp
Parts No	07281-01589 234-977-6230 3818987541 6685114341 6685-11-4343 6685-11-4431 6685114430 6685-11-4342
Machine Model	NT-855-1D HD680-2
Category	Air Intake Manifold And Connection
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Compatible models

• More other clamp parts fit for KOMATSU machine

206-62-73560NK Clamp

PC290

198-79-19140 CLAMP

D575A

37F-1PC-2440 CLAMP

FD200, FD250Z

111-14-12160 CLAMP

D30AM, D455A

209-62-61210 CLAMP

WA600, WA800, WA800L, WA900, WA900L, WD900

FF7810-62180 CLAMP

PW05, SK04, SK07

364-04-12130 CLAMP

GD22AC, GD22H, GD30, GD31, GD31RC, GD40HT

6754-21-6180 CLAMP, HOSE

D51EX/PX, PC200, PC200LL, PC220, PC220LL, PC270, PW180, PW200, PW220, SAA4D107E, SAA6D107E, WA200, WA200PZ, WA250, WA250PZ, WA320, WA320PZ, WA380

233-60-29350 CLAMP

GD405A

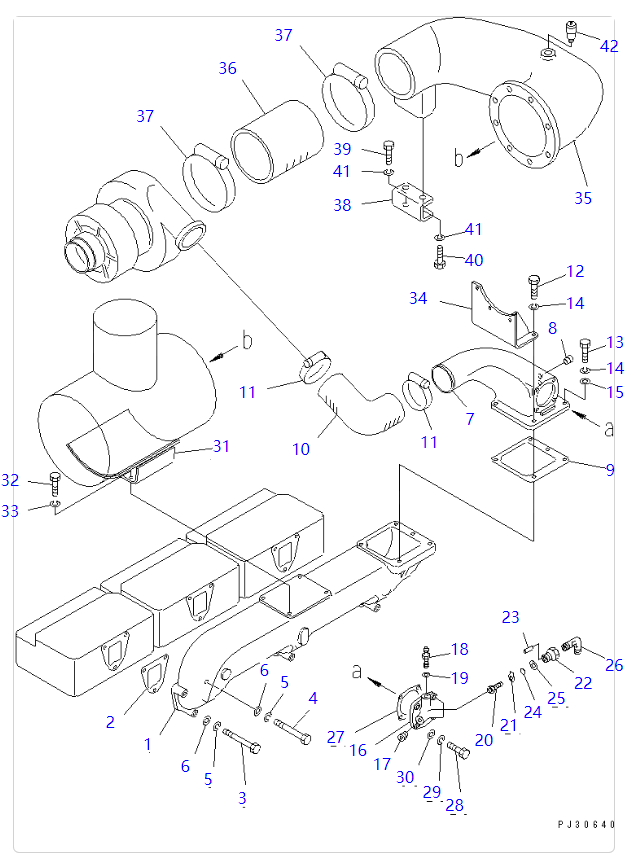

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
1	6631-11-4110	[1]	MANIFOLD,AIR INTAKE Komatsu China
			["SN: 153623-UP"] analogs:["6675144110"]
2	6610-11-4812	[3]	GASKET (K1) Komatsu China
			["SN: 153623-UP"] analogs:["CU130653", "CU202961", "CU3008591", "6610114811", "6610114813", "6610114810", "6710114812", "6710114810", "6710114811"]
3	6645-13-4191	[8]	BOLT Komatsu China
			["SN: 153623-UP"]
4	02010-70689	[1]	BOLT Komatsu China
			["SN: 153623-UP"] analogs:["CUS105", "CU205199", "0201030689", "0201020689"]
5	01602-00929	[9]	WASHER,SPRING Komatsu	0.004 kg.
			["SN: 153623-UP"]
6	01640-21016	[9]	WASHER Komatsu	0.177 kg.
			["SN: 153623-UP"] analogs:["0164001016", "0164221016", "0164201016"]
7	6711-11-4330	[1]	CONNECTOR Komatsu China
			["SN: 153623-UP"]
8	07042-00108	[2]	PLUG Komatsu	0.007 kg.
			["SN: 153623-UP"] analogs:["0704210108"]
9	6685-11-4222	[1]	GASKET (K1) Komatsu China
			["SN: 153623-UP"] analogs:["6685114223"]
10	6631-11-4750	[1]	HOSE Komatsu China
			["SN: 153623-UP"]
11	07281-01159	[2]	CLAMP Komatsu	0.05 kg.
			["SN: 153623-UP"] analogs:["802660016"]
12	01010-31245	[2]	BOLT Komatsu China	0.056 kg.
			["SN: 153623-UP"] analogs:["01010E1245", "0101061245"]
13	01010-31240	[3]	BOLT Komatsu	0.052 kg.
			["SN: 153623-UP"] analogs:["01010E1240", "0101061240"]
14	01602-01236	[5]	WASHER,SPRING Komatsu	0.007 kg.
			["SN: 153623-UP"]
15	01640-21223	[3]	WASHER Komatsu	0.012 kg.
			["SN: 153623-UP"] analogs:["0164001223"]
16	6675-11-4950	[1]	COVER Komatsu	0.5 kg.
			["SN: 153623-UP"]
17	02720-20204	[1]	PLUG Komatsu	0.005 kg.
			["SN: 153623-UP"] analogs:["6610212720"]
18	600-815-2110	[1]	GLOW PLUG Komatsu China	0.07 kg.
			["SN: 153623-UP"]
19.	600-815-2190	[1]	GASKET (K1) Komatsu	0.001 kg.
			["SN: 153623-UP"]
	6610-81-4103	[1]	NOZZLE ASS'Y Komatsu China
			["SN: 153623-UP"] |20.
20.	6610-81-4112	[1]	NOZZLE ASS'Y,PREHEATER Komatsu China
			["SN: 153623-UP"] analogs:["6610814103"]
21.	6610-81-4120	[1]	PLATE (K1) Komatsu	0.042 kg.
			["SN: 153623-UP"]
22.	6610-81-4132	[1]	ADAPTER Komatsu China
			["SN: 153623-UP"] analogs:["6610814103"]
23.	6610-81-4140	[1]	PIN Komatsu China
			["SN: 153623-UP"] analogs:["6610814103"]
24.	6610-81-4240	[1]	O-RING (K1) Komatsu	0.007 kg.
			["SN: 153623-UP"]
25.	6610-81-4150	[1]	GASKET (K1) Komatsu	0.016 kg.
			["SN: 153623-UP"]
26	6610-81-8820	[1]	ELBOW Komatsu	0.04 kg.
			["SN: 153623-UP"]
27	6675-11-4960	[1]	GASKET (K1) Komatsu	0.008 kg.
			["SN: 153623-UP"] analogs:["6675114961"]
28	01010-30825	[4]	BOLT Komatsu	0.015 kg.
			["SN: 153623-UP"] analogs:["01010E0825"]
29	01602-00825	[4]	WASHER,SPRING Komatsu	0.004 kg.
			["SN: 153623-UP"] analogs:["0160220825", "0231011020", "6124613790"]
30	01640-20816	[4]	WASHER Komatsu	0.002 kg.
			["SN: 153623-UP"]
31	6711-11-4543	[1]	BRACKET Komatsu China
			["SN: .-UP"] analogs:["6711114540", "6711114541", "6711114542"]
	6711-11-4542	[1]	BRACKET Komatsu China
			["SN: 153623-."] analogs:["6711114543", "6711114540", "6711114541"] |31.
32	01010-31030	[4]	BOLT Komatsu China	0.03 kg.
			["SN: 153623-UP"] analogs:["01010E1030"]
33	01602-01030	[4]	WASHER,SPRING Komatsu	0.004 kg.
			["SN: 153623-UP"] analogs:["0160211030"]
34	6711-11-4551	[1]	BRACKET Komatsu China
			["SN: 153623-UP"] analogs:["6711114550"]
35	6711-11-4240	[1]	CONNECTOR Komatsu China
			["SN: 153623-UP"]
36	6691-11-4740	[1]	HOSE Komatsu	0.275 kg.
			["SN: 153623-UP"]
37	07281-01589	[2]	CLAMP Komatsu China
			["SN: 164602-UP"] analogs:["0728101659", "2349776230", "3818987541", "6685114341", "6685114343", "6685114431", "6685114430", "6685114342"]
	07281-01659	[2]	CLAMP Komatsu China
			["SN: 153623-164601"] analogs:["0728101589", "2349776230", "3818987541", "6685114341", "6685114343", "6685114431", "6685114430", "6685114342"] |37.
38	6711-11-4530	[1]	BRACKET Komatsu China
			["SN: 153623-UP"]
39	01010-31230	[2]	BOLT Komatsu	0.043 kg.
			["SN: 153623-UP"] analogs:["01010E1230", "0101061230"]
40	01010-31235	[2]	BOLT Komatsu	0.048 kg.
			["SN: 153623-UP"] analogs:["01010E1235", "M018011200356", "0101061235"]
42	08670-00001	[1]	INDICATOR,DUST Komatsu	0.022 kg.
			["SN: 153623-UP"] analogs:["0867012001", "0867050001"]

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
