• 708-25-17690 7082517690 Spring Excavators Spare Parts Fit KOMATSU PC100 PC1000SE

• Specification

Application	KOMATSU excavator spare Parts
Name	Spring
Parts No	708-25-17690 7082517690
Model	PC100 PC1000SE PC1000SP PC100L PC1100 PC1100SE PC1100SP PC120 PC1250 PC1250SE PC1250SP PC130 PC150 PC150HD PC150NHD PC180 PC1800 PC180L PC200 PC210 PC220 PC240 PC300 PC300HD PC310 PC400 PC400HD PC410 PC600 PC650 PC650SE PC700 PC710 PC710SE PC750 PC750SE PC800 PC800SE PW170
Delivery time	Stock for urgent delivery
Quality	Brand new, OEM quality
MOQ	1 PCS
Design	made in china
Means of transport	By sea/air, DHL FEDEX UPS TNT Express
Packing	As request or standard packing

• Applicable models

EXCAVATORS PC100 PC1000SE PC1000SP PC100L PC1100 PC1100SE PC1100SP PC120 PC1250

PC1250SE PC1250SP PC130 PC150 PC150HD PC150NHD PC180 PC1800 PC180L PC200 PC210 PC220

PC240 PC300 PC300HD PC310 PC400 PC400HD PC410 PC600 PC650 PC650SE PC700 PC710 PC710SE

PC750 PC750SE PC800 PC800SE PW170
MOBILE CRUSHERS AND RECYCLERS BR200 BR200J BR200R BR200S BR300J BR310JG
WHEEL LOADERS WA700 WA800 WA900 WA900L Komatsu

• More spring supply to KOMATSU machine

23D-950-8311 SPRING

GD555, GD655, GD675, GD755, GH320

427-15-19810 SPRING,WAVE

WA800, WA800L, WA900, WA900L, WD900

232-955-5570 SPRING

GD22AC, GD305A, GD355A, GD405A, GD500R, GD505A, GD600R, GD605A, GD705A, GD705R, GH320

287-43-13721 SPRING

GD555, GD655, GD675, GD755, WA500, WA600, WA700, WA800, WA900, WD600, WD900, WF450, WF450T, WF550T, WS23S

566-35-14580 SPRING

HD200, HD200D, HD205, HD320, HD325, HD460, HD465, HD680, HD785

714-08-12911 SPRING,WAVE

LW250, WA120, WA120L, WA150, WA150L, WA150PZ, WA180, WA180L, WA180PT, WA470, WA480

423-904-1720 SPRING,R.H.

WA100, WA100M, WA100SS, WA100SSS, WA150, WA200

423-904-1710 SPRING,L.H.

WA100, WA100M, WA100SS, WA100SSS, WA150, WA200

566-43-15150 SPRING

HD320, HD325, WS16

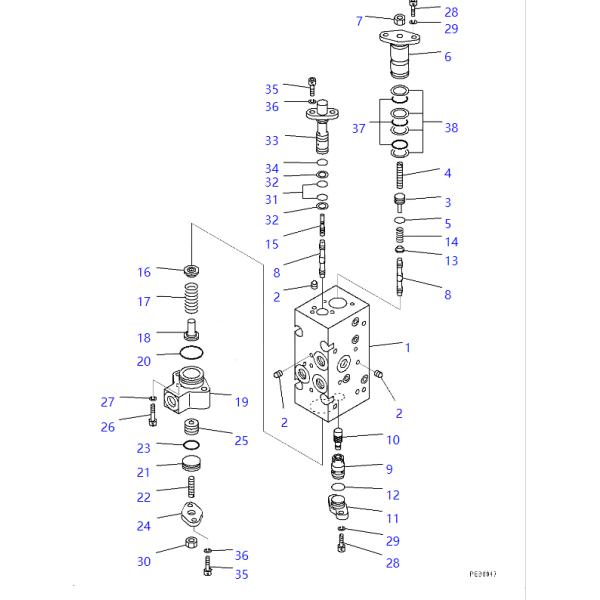

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
	708-2L-00681	[1]	Pump Assembly Komatsu	196 kg.
			["SN: 30254-UP"] analogs:["7082L00680"] |$0.
	708-2L-00680	[1]	Pump Assembly Komatsu	196 kg.
			["SN: 30158-30253", "SCC: A1"] analogs:["7082L00681"] |$1.
	708-25-85260	[1]	Valve Assembly, Servo,Rear Komatsu	20.401 kg.
			["SN: 30158-UP"] |$2.
	708-25-09681	[1]	Valve Assembly, CO+NC Komatsu China
			["SN: 30158-UP"] analogs:["7082509680"] |$3.
	708-23-00441	[1]	Body Assembly Komatsu China
			["SN: 30158-UP", "SCC: C2"] |$4.
3	708-25-17460	[1]	Plug Komatsu China
			["SN: 30158-UP", "SCC: C2"]
4	708-25-17430	[1]	Screw Komatsu China
			["SN: 30158-UP", "SCC: C2"]
5	07000-B2010	[1]	O-ring Komatsu	0.001 kg.
			["SN: 30158-UP", "SCC: C2"] analogs:["7082L25990"]
6	708-25-17131	[1]	Cover Komatsu China
			["SN: 30158-UP", "SCC: C2"] analogs:["7082517130"]
7	01580-10806	[1]	Nut Komatsu	0.005 kg.
			["SN: 30158-UP", "SCC: C2"] analogs:["801920104"]
8	708-25-17141	[2]	Spool Komatsu	0.02 kg.
			["SN: 30158-UP", "SCC: C2"]
9	708-25-17150	[1]	Sleeve Komatsu	0.032 kg.
			["SN: 30158-UP", "SCC: C2"]
10	708-25-17160	[1]	Piston Komatsu China
			["SN: 30158-UP", "SCC: C2"]
11	708-25-17170	[1]	Cover Komatsu China
			["SN: 30158-UP", "SCC: C2"]
12	07000-B2014	[1]	O-ring Komatsu China	0.001 kg.
			["SN: 30158-UP", "SCC: C2"]
13	708-25-17180	[1]	Seat Komatsu China
			["SN: 30158-UP", "SCC: C2"]
14	708-25-17690	[1]	Spring Komatsu China
			["SN: 30158-UP", "SCC: C2"]
15	708-25-17220	[1]	Piston Komatsu	0.009 kg.
			["SN: 30158-UP", "SCC: C2"]
16	708-25-17370	[1]	Seat Komatsu China
			["SN: 30158-UP", "SCC: C2"] analogs:["7082517240"]
17	708-25-17250	[1]	Spring Komatsu China
			["SN: 30158-UP", "SCC: C2"]
18	708-25-17470	[1]	Seat Komatsu China
			["SN: 30158-UP", "SCC: C2"]
19	708-23-17290	[1]	Cover Komatsu China
			["SN: 30158-UP", "SCC: C2"]
20	07000-B3028	[1]	O-ring Komatsu	0.001 kg.
			["SN: 30158-UP", "SCC: C2"]
21	708-25-17380	[1]	Plug Komatsu China
			["SN: 30158-UP", "SCC: C2"]
22	708-25-15340	[1]	Screw Komatsu China
			["SN: 30158-UP", "SCC: C2"]
23	07000-B2021	[1]	O-ring Komatsu	0.001 kg.
			["SN: 30158-UP", "SCC: C2"]
24	708-23-17240	[1]	Cover Komatsu	0.046 kg.
			["SN: 30158-UP", "SCC: C2"]
25	708-25-17480	[1]	Piston Komatsu China
			["SN: 30158-UP", "SCC: C2"]
26	01252-60630	[2]	Bolt, Hexagon Socket Head Komatsu	0.01 kg.
			["SN: 30158-UP", "SCC: C2"] analogs:["0125240630"]
27	01602-20619	[2]	Washer Komatsu	0.004 kg.
			["SN: 30158-UP", "SCC: C2"] analogs:["802150506"]
28	01252-60616	[4]	Bolt, Hexagon Socket Head Komatsu	0.007 kg.
			["SN: 30158-UP", "SCC: C2"] analogs:["0125230616"]
31	07000-B2012	[2]	O-ring Komatsu China	0.001 kg.
			["SN: 30158-UP", "SCC: C2"]
32	07001-02012	[2]	Ring, Back-up Komatsu	0.002 kg.
			["SN: 30158-UP", "SCC: C2"]
33	708-25-17451	[1]	Sleeve Komatsu China
			["SN: 30158-UP", "SCC: C2"]
38	07001-02021	[4]	Ring, Back-up Komatsu	0.061 kg.
			["SN: 30158-UP", "SCC: C2"]

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 6-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
