- 65.09100-7082 65.09100-7072 SOLAR 300LC-V Turbocharger Fit DOOSAN Excavator Engine Parts
| Category | DOOSAN exavator engine parts |
| Name | Turbocharger |
| Parts No | 65.09100-7082 65.09100-7072 |
| Machine Model | DOOSAN DX300LCA SOLAR 300LC-7A 300LC-V |
| Engine model | D1146 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- More other turbochargers applied to DOOSAN equipment
| 65.09100-7083 . TURBOCHARGER ASS'Y |
| Doosan |
| |
| K1026854 TURBOCHARGER ASS'Y |
| Doosan |
| |
| K1019335 TURBOCHARGER PLUMBING |
| Doosan |
| |
| 65.09100-7110 TURBOCHARGER ASS`Y |
| Doosan |
| |
| K9007318 TURBOCHARGER |
| Doosan |
| |
| 65.09100-7022 TURBOCHARGER ASS'Y |
| Doosan |
| |
| 65.09100-7072 TURBOCHARGER ASS'Y |
| Doosan |
| |
| 65.09100-7073 TURBOCHARGER ASS'Y |
| Doosan |
| |
| 65.09100-7114 TURBOCHARGER ASS'Y |
| Doosan |
| |
| K9003437 TURBOCHARGER |
| Doosan |

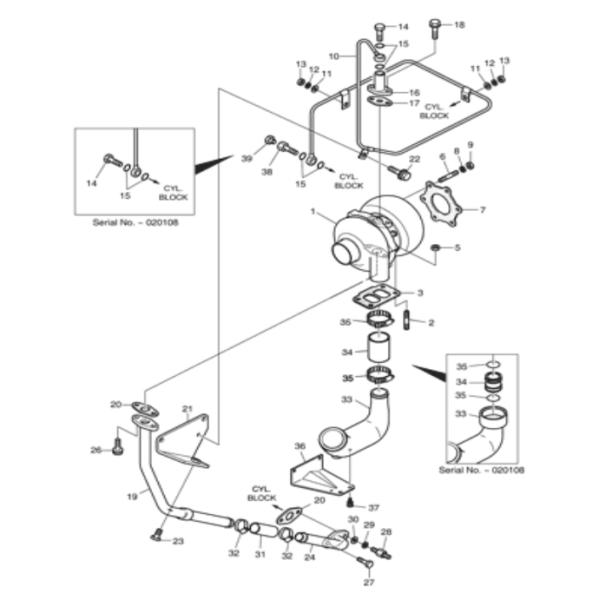

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 65.09100-7072 | [1] | TURBOCHARGER ASS'Y | |
| 1 | 65.09100-7082 | [1] | TURBOCHARGER ASS'Y | |
| 10 | 65.05701-5345 | [1] | PIPE;OIL | |
| 10 | 65.05701-5453 | [1] | PIPE;OIL | |
| 11 | 06.15010-2311 | [2] | WASHER | |
| 12 | 06.16731-2107 | [2] | WASHER | |
| 13 | 06.11063-8214 | [2] | . NUT | |
| 14 | 06.78144-2403 | [2] | HOLLOW SCREW M12X1.5 | |
| 14 | 06.78144-2403 | [1] | HOLLOW SCREW M12X1.5 | |
| 15 | 06.56190-0704 | [4] | . RING;SEAL | |
| 16 | 65.98131-5003 | [1] | ADAPTER FLANGE ASS`Y | |
| 17 | 65.96601-0046A | [1] | GASKET;OIL PIPE ADAPTER | 65.96601-0046B |
| 17 | 65.96601-0046B | [1] | GASKET;OIL PIPE ADAPTER | |
| 18 | 06.01913-3114 | [2] | BOLT ASS`Y M8X22 | |
| 19 | 65.05701-5335 | [1] | PIPE;OIL | |
| 2 | 65.90201-0073 | [4] | . BOLT;STUD | |
| 20 | 65.96601-0045A | [2] | GASKET | 65.96601-0067 |
| 20 | 65.96601-0067 | [2] | GASKET;T/C OIL RETURN | |
| 21 | 65.05740-5001A | [1] | BRACKET | |
| 22 | 06.01923-3111 | [1] | BOLT, M8X16 | 65.90020-0068 |
| 22 | 65.90020-0068 | [1] | BOLT ASS'Y M8X16 | |
| 23 | 06.01923-3217 | [1] | BOLT ASS`Y M10X30 | |
| 24 | 65.05701-5336A | [1] | OIL PIPE ASS`Y(T/C-C/B) | |
| 26 | 06.01913-3112 | [2] | BOLT ASS`Y M8X18 | |
| 26 | 06.01913-3114 | [2] | BOLT ASS`Y M8X22 | |
| 27 | 06.01913-3113 | [1] | .. BOLT ASS`Y M8X20 | |
| 28 | 65.90201-0075 | [1] | BOLT;SPACER | |
| 29 | 06.16731-2107 | [1] | WASHER | |
| 3 | 65.09901-0018A | [1] | GASKET | |
| 30 | 06.15010-2311 | [1] | WASHER | |
| 31 | 65.96301-0327 | [1] | HOSE;RUBBER | 65.96301-0327A |
| 31 | 65.96301-0327A | [1] | HOSE;RUBBER | |
| 32 | 06.67020-0105 | [2] | CLAMP | |
| 33 | 65.09411-5041 | [1] | INLET | |
| 33 | 65.09411-5053 | [1] | INLET | |
| 34 | 65.08220-0002A | [1] | PIPE;CONNECTION | |
| 34 | 65.96301-0279 | [1] | HOSE;RUBBER | |
| 35 | 65.96501-0058 | [2] | O-RING | |
| 35 | 06.67020-0109 | [2] | CLAMP;HOSE | |
| 36 | 65.09440-0010 | [1] | BRACKET | |
| 37 | 06.01923-3215 | [2] | BOLT ASS`Y M10X25 | |
| 38 | 65.98150-0002 | [1] | ADAPTER | |
| 39 | 65.90320-0022 | [1] | PLUG SCREW | |
| 5 | 06.11024-9202 | [4] | NUT M10X1.25 | 65.90535-0001 |
| 5 | 65.90535-0001 | [4] | NUT | |
| 6 | 65.90201-0072 | [6] | BOLT;STUD M10X1.5X30 | |
| 7 | 65.09901-0012 | [1] | GASKET | |
| 8 | 06.16731-2108 | [6] | WASHER;SPRING | |
| 9 | 06.11063-8215 | [6] | NUT;HEX. M10 | |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden case
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below cases
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
