108-6503 1086503 Piston Assy For 330D 336D Excavator Travel Motor Parts

Brand Name : OEM

Model Number : 108-6503

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Payment Terms : D/P, T/T, Western Union, MoneyGram, D/A, L/C

Supply Ability : 100-2000

Delivery Time : 3-7 working days

Packaging Details : Wooden box for heavy parts, paper carton for light parts

Category : Excavator travel motor parts

Machine Model : 330C 330D 336D 336D 336E 336F 340D

Parts No. : 108-6503

Parts name : Travel motor piston

Warranty : 3/6 Months

Package : standard export carton

Contact Now

108-6503 1086503 Piston Assy For 330D 336D Excavator Travel Motor Parts

Spec Sheet

Spare parts name	travel motor piston
Equipment Model	330C 330D 336D 336D 336E 336F 340D
Parts Category	Excavator travel motor parts
Spare parts Condition	Brand new, OEM quality
MOQ of order(PCS, SET)	1 PCS
Parts Availability	In stock
Delivery Lead time	1-3 days

Application

EXCAVATOR 325C 328D LCR 330C 330C FM 330C L 330C MH 330D 330D L 330D LN 330D MH 336D 336D L 336D LN 336D2 336D2 L 336E 336E H 336E L 336E LH 336E LN 336F L 340D L 340D2 L
MOBILE HYD POWER UNIT 330D 336D L 336E HVG
WHEEL LOADER 993K Caterpillar

More piston parts for C A T equipment

7I7183 PISTON

320B, 320C, 320N, 322 FM L, 322 LN, 322B L, 322B LN, 322C FM, 325, 325 L, 325 LN, 325B L, 325C, 325C L, 325D MH, 330, 330 FM L, 330B L, 330C, 345B L, 350, 350 L, 5080, M320, M325B

1884161 PISTON AS

1090, 322C, 325C, 325D L, 329D L, 330C, 330C L, 330D, 330D L, 330D LN, 330D MH, 336D L, 336D LN, M330D

2979155 PISTON

320C, 320C FM, 320D, 320D FM, 320D FM RR, 322C FM, 323D LN, 323D SA, 323E L, 324D FM, 324D FM LL, 325C, 325D, 325D L, 329D, 329D L, 329D LN, 329E, 329E L, 329E LN, OEMS

1884216 PISTON

320C, 322C, 323D L, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 325C, 325C FM, 325C L, 325D, 325D FM, 325D L, 326D L, 328D LCR, 329D, 329D L, 329D LN, 329E, 330C, 330C FM, 330C L, 330D, 330D FM, 330...

7Y1867 PISTON

1290T, 1390, 330, 330 FM L, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D FM, 330D L, 330D MH, 345B, 345B II, 345B II MH, 345B L, 345C, 345C L, 345C MH, 345D L, 350, 532, 541, 551, 552, OEMS, TK1051, T...

2835980 PISTON AS

1090, 1190, 1190T, 1290T, 1390, 2290, 2390, 2391, 2491, 2590, 330C, 330C FM, 330C L, 330C MH, 345B II, 345B II MH, 511, 521, 521B, 522, 522B, 532, 541, 541 2, 551, 552, 552 2, TK1051, TK711, TK721, TK...

1793045 PISTON

322C, 322C FM, 325C, 325C FM, 325C L, 325D FM, 325D FM LL, 325D L, 325D MH, 328D LCR, 330C, 330C L, 330D, 330D L, 330D LN

2979156 PISTON

322C, 322C FM, 324D FM, 324D FM LL, 325C, 325C FM, 325D FM, 325D FM LL, 325D L, 325D MH, 328D LCR, 329D L, 330C, 330C L, 330D, 330D L, 330D LN, 336D, 336D L, 336D LN, 336D2, 336D2 L, 336E, 336E H, 336...

2478873 PISTON

320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 320E LN, 320E LRR, 320E RR, 321D LCR, 323D L, 323D LN, 323D SA, 323D2 L, 323E L, 324D, 3...

2959691 PISTON AS

330D, 330D FM, 330D L, 330D LN, 330D MH, 345C, 345C L, 345C MH, M330D, W345C MH

1850232 PISTON

324D, 329D LN, 330C, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336E HVG, 340D L, 345B II, 345C, 345C L, 345D, 345D L, 345D L VG, 349D, 349D L, 365B, 365C

1915603 PISTON

324D, 325C, 325D L, 328D LCR, 330C, 330C FM, 330C L, 330D, 330D FM, 330D L, 330D LN, 336D, 336D L, 336D LN, 340D L, 345C, 345C L, 345D L, 349D, 349D L, 385C L

2479734 PISTON

993K

2474930 PISTON

993K

2418429 PISTON

993K

3261356 PISTON

993K

3704132 PISTON

980H

3754307 PISTON

992G, 992K

3482293 PISTON

950K

3495783 PISTON

950K

3491246 PISTON

950K, 962K

3866091 PISTON

950K, 962K

3626446 PISTON

950K, 962K

3626445 PISTON

950K, 962K

catalog parts list

Pos.	Part No	Qty	Parts name	Comments
1	1T-0936	[1]	PLUG-ORIFICE
2	4B-4158	[4]	SCREW-DRIVE (NO 4X0.25-IN)
3	6V-3382 J	[1]	SEAL-LIP TYPE
4	8J-2559	[1]	PLATE-WARNING (OIL FILL)
5	087-4786	[1]	ADAPTER
6	108-6503	[9]	PISTON AS
7	118-4057	[9]	SPRING
8	124-1541	[2]	PIN
9	124-1561	[20]	SPRING-BRAKE
10	137-3708	[1]	RETAINER
11	167-3855	[1]	SHAFT
12	167-3857	[1]	KEY
13	167-3858	[1]	KEY
14	167-3859	[1]	PLATE-CAM
15	167-3862	[1]	PLATE-RETAINER
16	167-3863	[1]	BALL
17	167-3865	[5]	PLATE-SEPARATOR
18	167-3866	[4]	PLATE-FRICTION
19	167-3867	[1]	PLATE-PORT
20	167-3868	[1]	PISTON-BRAKE
21	167-3872	[1]	SPOOL
22	170-1612 J	[2]	SEAL
23	170-1626 J	[1]	RING-BACKUP
24	170-1627 J	[1]	RING-BACKUP
25	173-4063	[1]	BARREL AS-MOTOR
26	173-4066	[1]	SPACER (63.05X79.8X7-MM THK)
27	175-7436	[1]	VALVE
28	175-7887	[2]	DOWEL
29	180-6769	[1]	BEARING AS
30	180-6770	[1]	BEARING AS
31	186-5175	[1]	PLUG
32	193-7901	[1]	BODY AS
	124-1555	[4]	PLUG
33	271-6377	[1]	HEAD AS
	096-5916	[2]	SEAT
	124-1555	[4]	PLUG
34	274-4512	[1]	SEAT
35	274-4513	[2]	RETAINER
36	345-3744	[1]	PISTON-ACTUATOR
37	095-1572 J	[2]	SEAL-O-RING
38	095-1585 J	[1]	SEAL-O-RING
39	095-1596 J	[1]	SEAL-O-RING
40	095-1700 J	[2]	SEAL-O-RING
41	095-7380	[1]	SPRING
42	096-3978	[1]	SPRING
43	096-5919 J	[2]	RING-BACKUP
44	099-7030 J	[1]	RING-BACKUP
45	170-1616 J	[1]	SEAL
46	2D-6642	[2]	BALL
47	2M-9780 J	[1]	SEAL-O-RING
48	2R-1236	[1]	RING-RETAINING (LOCK, INTERNAL)
49	3D-2824 J	[2]	SEAL-O-RING
50	3K-0360 J	[2]	SEAL-O-RING
51	4K-4284	[1]	RING-RETAINING
52	6V-5192 M	[4]	BOLT-SOCKET HEAD (M8X1.25X30-MM)
53	7Y-5219 J	[2]	SEAL-O-RING
54	8T-2393 M	[8]	BOLT-SOCKET HEAD (M16X2X60-MM)
55	9S-8005	[2]	PLUG (3/4-16-THD)
56	9S-8008	[2]	PLUG (1-1/16-12-THD)

			AVAILABLE REPAIR KIT(S):
	272-0290 J	[1]	KIT-SEAL (TRAVEL MOTOR)
	J		KIT MARKED J SERVICES PART(S) MARKED J
	M		METRIC PART

108-6503 1086503 Piston Assy For 330D 336D Excavator Travel Motor Parts

Description

Hydraulic pump & Motor parts are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.

Advantage

1. The pump & Motor parts are built to fit to the genuine drive gearbox system.

2. The pump & Motor parts are supplied strictly according to the genuine parts catalog.

3. All the pump & Motor components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of pump & motor parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below cases

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX

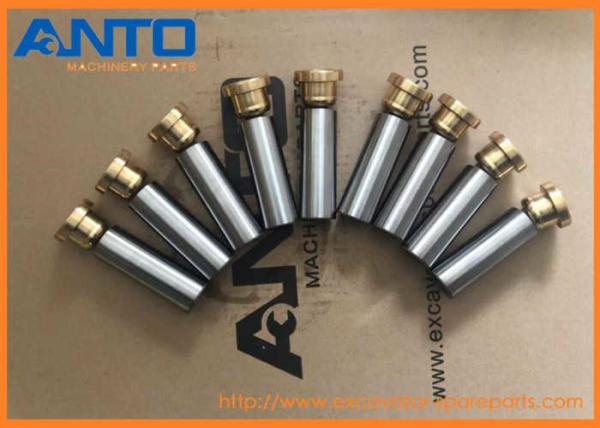

108-6503 1086503 Piston Assy For 330D 336D Excavator Travel Motor Parts Images
