- More other gear for HYUNDAI machines
3929027 GEAR-CRANKSHAFT
100D-7, 33HDLL, H70, H80, HDF35A-2, HDF50A, HL720-3C, HL730-7, HL7303C, HL730TM3C, HL730TM7, HL740-3, HL740-3ATM, HL740-7, HL740-7S, HL740-9B, HL740-9S, HL740-9SB, HL740TM-3, HL740TM-3A, HL740TM-7, HL...
3905427 Hyundai
3905427 GEAR-FLYWHEEL RING
100D-7, 110D-7A, 110D-7E, 110D-9, 180DE, 250D-9, 250DE, 33HDLL, 42HDLL, HL17C, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7303C, HL730TM-9, HL730TM-9A, HL730TM3C, HL730TM7,...
4896380 Hyundai
4896380 GEAR-CAMSHAFT
HL760-7A, HL760-9, HL760-9SB, R200W7A, R210W-9, R210W9MH, R250LC7A
4893389 Hyundai
4893389 GEAR-FUEL PUMP
R200W7A, R210LC7A, R210LC9, R210NLC7A, R210NLC9, R250LC7A
XKAQ-00795 GEAR-SUN 1
80DEACE, R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R210NLC7A, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, RB220LC9S, RD210-7, RD210-7V, RD220-7, RD220LC9
XKDE-01932 GEAR-FLYWHEEL
110D-7E, HL740-9, HL740TM-9, HL757-9, HL757-9S, HL757-9SM, HL757TM-9, HL760-9, HL760-9S, R140W9, R170W9, R210LC7, R210LC7A, R210LC9, R210LC9BC, R210NLC9, R210W-9, R210W9MH, R210W9S, R235LCR9, R260LC9S...
XKDE-01124 GEAR-CRANKSHAFT
HL757-9SM, R210LC7, R210LC9BC, R210W9S, R260LC9S, RD220-7, RD220LC9
XKDE-01121 GEAR-CAMSHAFT
HL757-9SM, R210LC7, R210LC9BC, R210W9S, R260LC9S, RD220-7, RD220LC9
XKAQ-00976 GEAR-PINION
R160LC7, R170W7, R180LC7, R200W7, R210LC7, R210LC7A, R210NLC7A, R215LC7, RD210-7, RD210-7V, RD220-7
XKDE-02419 GEAR-FUEL PUMP
R210LC7, R210LC9BC
XKDE-02420 GEAR-FUEL PUMP
R210LC7, R210LC9BC, RD220-7, RD220LC9
ZGAQ-01991 GEAR SHIFT SENSOR 1
R200W7
3901774 Hyundai
3901774 GEAR-FLYWHEEL RING
H70, H80, R130LC, R130LC3, R130W, R130W3, R160LC3
3931450 GEAR
HL740-3, HL740TM-3, HL750-3, HL750TM3, R130LC3, R160LC3
215811A GEAR-SUN
R160LC3
215809A GEAR-RING(B)
R160LC3
215817B GEAR-RING(A)
R160LC3
215810A GEAR-CLUSTER
R160LC3
116970A GEAR-COUPLING
R160LC3
20941-61378 GEAR-DRIVE
R130LC3, R160LC3
20941-61666 GEAR-PLANETARY,A
R130LC3, R160LC3
20941-61425 GEAR-SUN,B
R130LC3, R160LC3
20941-61724 GEAR-PLANETARY,B
R130LC3, R160LC3
20941-61341 GEAR-DRIVE
R160LC3
XKAQ-00014 GEAR-PINION
R160LC7A, R170W7A, R180LC7A, R200W7, R200W7A, R210LC7, R210NLC7, RC215C7, RC215C7H
XKAQ-00023 GEAR-PLANET 2
HX160L, HX180L, R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180LC7, R180LC7A, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R200W7, R200W7A, R210LC7, R...
XKAQ-00011 Hyundai
XKAQ-00011 GEAR-SUN 2
R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, RC215C7, RC215C7H, RD210-7, RD210-7V, RD220-7
XKAQ-00025 GEAR-PLANET 1
HX160L, HX180L, R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180LC7, R180LC7A, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R200W7, R200W7A, R210LC7, R...
XKAQ-00010 Hyundai
XKAQ-00010 GEAR-SUN 1
HX160L, HX180L, R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180LC7, R180LC7A, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R200W7, R200W7A, R210LC7, R...
32A23-00301 GEAR-CRANKSHAFT
R160LC7, R160LC9S, R170W7, R170W9S, R180LC7, R180LC9S, R180W9S
32A21-00900 GEAR-RING
R160LC7, R160LC9S, R170W7, R170W9S, R180LC7, R180LC9S, R180W9S, R95W3
32A23-01100 GEAR-CAMSHAFT
R160LC7, R160LC9S, R170W7, R170W9S, R180LC7, R180LC9S, R180W9S, R95W3
32A23-12401 GEAR-INJECTION PUMP
R160LC7, R160LC9S, R170W7, R170W9S, R180LC7, R180LC9S, R180W9S
32A35-12101 GEAR-OIL PUMP
R160LC7, R160LC9S, R170W7, R170W9S, R180LC7, R180LC9S, R180W9S
M230X-00671 Hyundai
M230X-00671 GEAR ASSY
R160LC7, R160LC9S, R170W7, R170W9S, R180LC7, R180LC9S, R180W9S
XKAQ-00755 GEAR-SUN 2
HX160L, HX180L, R160LC9, R160LC9A, R160LC9S,

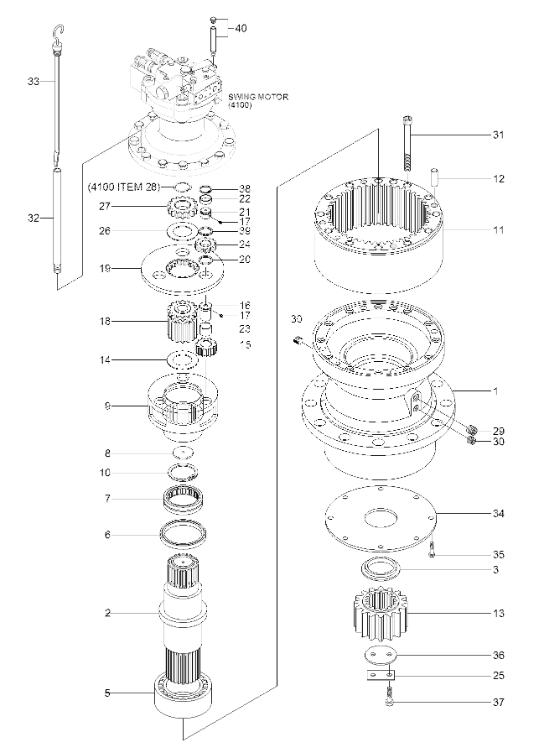

Pos. Part No Qty Parts name Comments
*. @ [1] SWING MOTOR ASSY SEE 4100
*-2. 31N6-10150 [1] REDUCTION GEAR
1. XKAQ-00002 [1] CASING ASSY
2. XKAQ-00331 [1] SHAFT-DRIVE
3. XKAQ-00018 [1] SPACER
5. XKAQ-00026 [1] BEARING-ROLLER
6. XKAQ-00032 [1] SEAL-OIL
7. XKAQ-00029 [1] BEARING-ROLLER
8. XKAQ-00076 [1] PLATE-THRUST
9. XKAQ-00075 [1] CARRIER 2
10. XKAQ-00074 [1] RING-STOP
11. XKAQ-00073 [1] GEAR-RING
12. XKAQ-00072 [4] PIN-KNOCK
13. XKAQ-00014 [1] GEAR-PINION
14. XKAQ-00071 [6] WASHER-THRUST
15. XKAQ-00023 [3] GEAR-PLANET 2
16. XKAQ-00070 [3] PIN & BUSHING INCL 23
17. XKAQ-00048 [6] PIN-SPRING
18. XKAQ-00011 [1] GEAR-SUN 2
19. XKAQ-00015 [1] CARRIER 1
20. XKAQ-00057 [3] PLATE-SIDE 1
21. XKAQ-00019 [3] PIN 1
22. XKAQ-00030 [3] CAGE-NEEDLE
N23. @ [3] BUSHING 2
24. XKAQ-00025 [3] GEAR-PLANET 1
25. XKAQ-00292 [1] WASHER-LOCK
26. XKAQ-00068 [1] PLATE-SIDE 3
29. XKAQ-00049 [1] PLUG
30. XKAQ-00066 [2] PLUG
31. XKAQ-00065 [2] BOLT-SOCKET
32. XKAQ-00035 [1] PIPE-GAUGE
33. XKAQ-00034 [1] BAR-GAUGE
34. XKAQ-00031 [1] PLATE-COVER
35. XKAQ-00064 [8] BOLT-HEX
36. XKAQ-00296 [1] PLATE-LOCK
37. XKAQ-00042 [2] BOLT-HEX
38. XKAQ-00041 [3] RING-STOP
39. XKAQ-00040 [3] PLATE-SIDE 2
40. XKAQ-00143 [1] AIR BREATHER ASSY
27. XKAQ-00067 [1] GEAR-SUN 1
The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing case.
1. The gear parts are built to fit to the genuine drive gearbox system.
2. The gear parts are supplied strictly according to the genuine parts catalog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below cases
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
