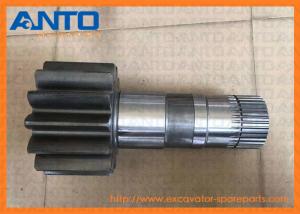

- VOE14640502 14640502 Pinion Shaft Applied To Vo-lvo EC300D Excavator Swing Gearbox
| Product name | Pinion shaft |
| Part number | VOE14640502 |
| Model | EC340D EC350D EC330B EC700C |
| Applied excavator | Vo-lvo |
| Category group | Excavator Swing Gearbox parts |
| MOQ | 1 PCS |
| Warranty | 6 months |
| Payment term | T/T, Western Union, MoneyGram |
| Delivery time | 1-3 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL, FEDEX, TNT, UPS, EMS |
EC330B EC340D EC350D EC700C EC700CHR Vo-lvo.Heavy
- More shaft for Vo-lvo models
VOE11037438 Shaft
A35C, A35C Vo-lvo BM, A35D, A40, A40 Vo-lvo BM, A40D
VOE17205124 Shaft
MC110C-MCT145C, MC60C-MCT95C
RM46625398 Shaft, Handle
PF2181, PF4410
VOE4837061 Shaft
A35
VOE17230237 Shaft
MC105C, MC60C, MC60C-MCT95C, MC70C, MC85C, MC95C
VOE17414431 Shaft
MC60C-MCT95C
RM80686579 Shaft
VB 78, VB 78 ETC, VB 78 GTC, VB 79 ETC, VB 88, VB 88 ETC, VB 88 GTC, VB 89 ETC, VDT-V 78 ETC, VDT-V 78 GTC, VDT-V 88 ETC, VDT-V 88 GTC, VDT-V 89 ETC, VDT-V78, VDT-V88
RM80686769 Shaft
MB 120 VARIO, MB 122 VARIO
RM87936761 Shaft
VDT 120 VARIO, VDT 121, VDT 121 VARIO
VOE11145817 Shaft
A35D, A40D, T450D
VOE6210817 Shaft
4500, 4600, 5350, L120, L120B Vo-lvo BM, L90, L90B Vo-lvo BM, L90C, L90C Vo-lvo BM, L90D
RM46625380 Shaft, Hopper L
PF2181, PF4410

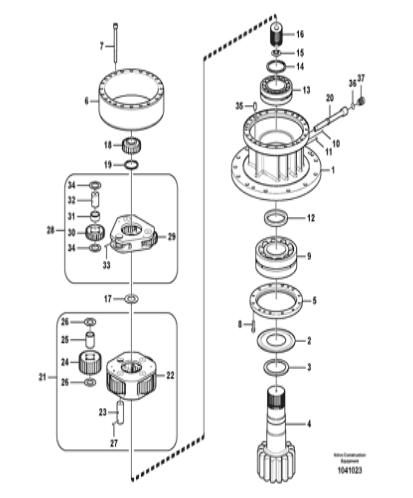

Pos. Part No Qty Parts name Comments
VOE14640501 [1] Swing gearbox
1. VOE14547262 [1] Case
2. VOE14547260 [1] Ring
3. VOE14547259 [1] Collar
4. VOE14640502 [1] Shaft
5. VOE14547263 [1] Cover
6. VOE14547266 [1] Gear
7. VOE984363 [20] Hex. socket screw
8. VOE984088 [12] Hex. socket screw
9. VOE14547261 [1] Bearing
10. SA9415-43012 [1] Plug
11. VOE914167 [1] Lubriing nipple
12. VOE14566830 [1] Seal
13. VOE14547265 [1] Bearing
14. SA9541-01110 [1] Retaining ring
15. SA7118-30380 [1] Thrust ring
16. VOE14547272 [1] Gear
17. VOE14547278 [1] Thrust washer
18. VOE14547279 [1] Gear
19. VOE14880960 [1] Retaining ring
20. VOE14547281 [1] Pipe
21. VOE14547280 [1] Planet carrier
22. VOE14547267 [1] Planet carrier
23. VOE14547271 [4] Pin
24. VOE14547268 [4] Gear
25. VOE14547269 [4] Bushing
26. VOE14556491 [8] Washer
27. SA9325-06012 [4] Spring pin
28. VOE14547273 [1] Planet carrier
29. VOE14547274 [1] Planet carrier
30. VOE14547275 [3] Gear
31. SA7117-30230 [3] Needle bearing
32. VOE14547277 [3] Pin
33. SA9325-06012 [3] Spring pin
34. VOE14547276 [6] Washer
35. VOE950677 [4] Pin
36. VOE949329 [1] Gasket
37. VOE14722461 [1] Draining valve
