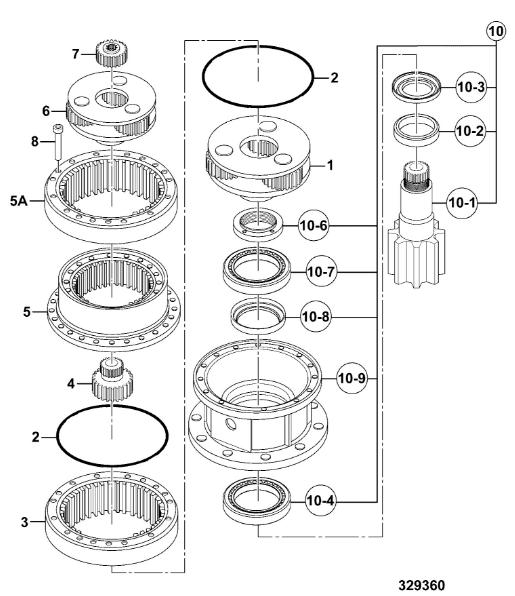

Number 6 on drawing
A. JRC0007 [1]
Gearbox swing
1. 05/903860 [1]
Gear reduction assembly
2. 05/902010 [2]
O Ring
3. 05/903862 [1]
Ring Toothed
4. 05/903863 [1]
Gear Sun
5. 05/903864 [1]
Cover
5A. 05/903865 [1]
Ring Toothed
6. 05/903866 [1]
Gear Reduction Assembly
7. 05/903867 [1]
Gear Sun
8. 05/903868 [16]
Screw M16 x 120mm
10. 05/903873 [1]
Gear output assembly
10-1. 05/903869 [1]
Shaft pinion 14 teeth
10-2. 05/903870 [1]
Spacer
10-3. 05/903871 [1]
Ring
10-4. 05/903872 [1]
Bearing
10-6. 05/903874 [1]
Nut
10-7. 05/903875 [1]
Bearing
10-8. 05/903876 [1]
Seal ring 100 x 130 x 12mm
10-8. 333/C7880 [1]
Seal 100x140x13 LARGER SIZE
10-9. 05/903877 [1]
Housing
11.
'See Remark' Gauge,oil level see page E2-7-3,Swing motor
The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing case.
1. The gear parts are built to fit to the genuine drive gearbox system.
2. The gear parts are supplied strictly according to the genuine parts catalog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below cases
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
