9196963 4398514 Excavator Swing Motor Drive Device Gearbox For Hitachi ZX200 ZX225

Brand Name : OEM

Model Number : ZX200

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Payment Terms : D/P, T/T, Western Union, MoneyGram, D/A, L/C

Supply Ability : 100-2000

Delivery Time : 3-7 working days

Packaging Details : Wooden box for heavy parts, paper carton for light parts

Category : Excavator Swing Gear Parts

Machine Model : ZX200

Parts NO. : 9196963 4398514

Material : forged, Steel

Warranty : 3/6 Months

Package : standard export carton

Contact Now

9196963 4398514 Excavator Swing Motor Drive Device Gearbox Applied To Hitachi ZX200 ZX225

Description

The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.

Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing case.

Spec Sheet

Excavator spare parts name	Swing device gearbox
Equipment Model	ZX200
Parts Category	Excavator Swing gear
Spare parts Condition	Brand new
MOQ of order(PCS, SET)	1
Parts Availability	In stock
Delivery Lead time	1-3 days

Application

IZX200 . IZX200LC . IZX210F . IZX210MF . MA200-G . ZX180LC . ZX180LC-AMS . ZX180LC-HCME . ZX180W . ZX180W-AMS . ZX200 . ZX200-3-HCMC . ZX200-3G . ZX200-E . ZX200-HHE . ZX200-X . ZX200LC-HHE . ZX210-AMS . ZX210-HCME . ZX210H . ZX210H-3G . ZX210K . ZX210K-3G . ZX210LC-3G . ZX210N-AMS . ZX210N-HCME . ZX210W . ZX210W-AMS . ZX225USR . ZX225USR-E . ZX225USRK . ZX240-AMS . ZX240-HCME . Hitachi

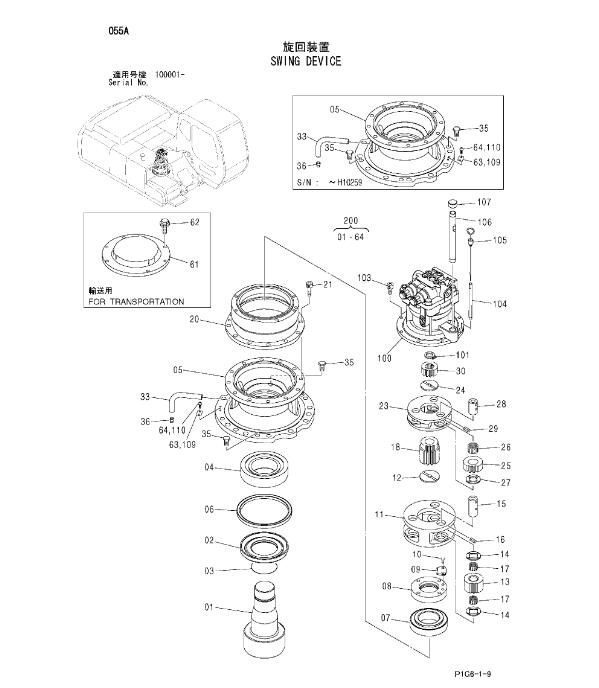

Parts Diagram

9196963 4398514 Excavator Swing Motor Drive Device Gearbox For Hitachi ZX200 ZX225

ENTIRE GROUP T.MISSION (SWING):

ENTIRE GROUP SWING DEVICE:

01.2044634[1] -
SHAFT;PROP.
02.3083742[1] -
SLEEVE
03.A811120[1] -
O-RING
04.4402481[1] -
BRG.;ROL.
05.1027617 Y[1] -
HOUSING 1032876
05.1032876[1] -
HOUSING
06.4411535[1] -
SEAL;OIL
07.4402637[1] -
BRG.;ROL.
08.3086064[1] -
NUT
09.4411122[1] -
PLATE;LOCK
10.J901020[2] -
BOLT
11.1026662[1] -
CARRIER
12.4187590[1] -
PLATE;THRUST
13.3084729[3] -
GEAR;PLANETARY
14.4336929[6] -
PLATE;THRUST
15.4336925 I[3] -
PIN 4488904
15.4488904[3] -
PIN
16.4027427[3] -
PIN;SPRING
17.4427630 I[6] -
BRG.;NEEDLE 4461644
17.4461644[6] -
BRG.;NEEDLE
17.4631475 I[6] -
BRG.;NEEDLE 4461644
18.3080912[1] -
GEAR;SUN
20.1025957[1] -
GEAR;RING
21.M341645[12] -
BOLT;SOCKET
23.1025912[1] -
CARRIER
24.4403371[1] -
PLATE;THRUST
25.3082517[3] -
GEAR;PLANETARY
26.4404506[3] -
BRG.;NEEDLE
27.4403082[3] -
PLATE;THRUST
28.4336923[3] -
PIN
29.4051262[3] -
PIN;SPRING
30.3084056[1] -
GEAR;SUN
33.3089362[1] -
PIPE
35.4445352[2] -
PLUG
36.94-2012[1] -
PLUG
61.3090308[1] -
COVER (for transportation)
62.J011230[4] -
BOLT;SEMS
62.J271230 T[4] -
BOLT;SEMS J901230

J222012 (for transportation)
63.3053093[1] -
NAME-PLATE (for transportation)
64.M492564[2] -
SCREW;DRIVE (for transportation)
100.4398514[1] -
MOTOR;OIL
101.991342[1] -
RING;RETAINING
103.M341228 I[8] -
BOLT;SOCKET 4614096
103.4614096[8] -
BOLT;SOCKET
104.4264452[1] -
PIPE
105.3074223[1] -
GAUGE;LEVEL
106.4332658[1] -
PIPE
107.4343365[1] -
CAP
109.3053093[1] -
NAME-PLATE
110.M492564[2] -
SCREW;DRIVE
200.9196963[1] -
SWING DEVICE (WITHOUT MOTOR)

Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below cases

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX

Product Tags:

swing gear box

swing reduction gear

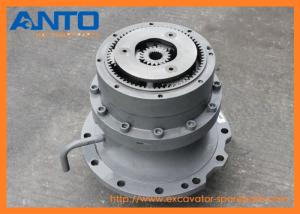

9196963 4398514 Excavator Swing Motor Drive Device Gearbox For Hitachi ZX200 ZX225 Images
