20Y-26-22170 20Y-26-22160 Excavator Swing Swing 2nd Planetary Carrier Assy Used For PC200-6 PC220-6

Brand Name : OEM

Model Number : PC200-6 PC220-6

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Payment Terms : D/P, T/T, Western Union, MoneyGram, D/A, L/C

Supply Ability : 100-2000

Delivery Time : 3-7 working days

Packaging Details : Wooden box for heavy parts, paper carton for light parts

Category : Excavator Swing Drive Gear

Machine Model : PC200-6 220-6

Parts NO. : 20Y-26-22170 20Y-26-22160 20Y-26-21141

Material : forged, Steel

Warranty : 3 Months

Package : standard export carton

Contact Now

20Y-26-22170 20Y-26-22160 Excavator Swing Swing 2nd Planetary Carrier Assy Used For PC200-6 PC220-6

Description

The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.

Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing case.

Spec Sheet

Excavator spare parts name	Swing reducer carrier
Equipment Model	PC200-6 PC210-6 PC220-6
Parts Category	excavator swing gear
Spare parts Condition	Brand new
MOQ of order(PCS, SET)	1
Parts Availability	In stock
Delivery Lead time	1-3 days

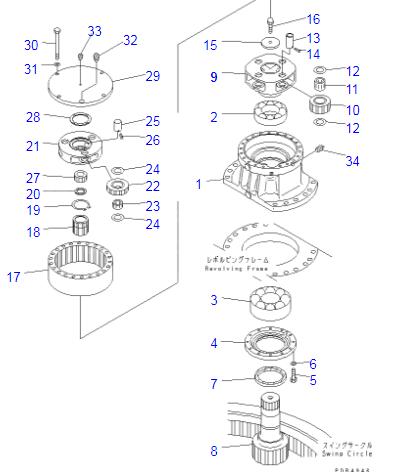

Parts Diagram

20Y-26-22170 20Y-26-22160 Excavator Swing Swing 2nd Planetary Carrier Assy Used For PC200-6 PC220-6

20Y-26-00151[1]- SWING MACHINERY A. Komatsu ["SN: 102083-UP"] ancatalogs:["20Y2600150"] |$0. Weight: 190 kg.

20Y-26-00150[1]- SWING MACHINERY A. Komatsu ["SN: 96514-102082"] ancatalogs:["20Y2600151"] |$1. Weight: 190 kg.

1.20Y-26-22210[1]- CASE Komatsu ["SN: 96514-UP"] ancatalogs:[] Weight: 76 kg.

2.20Y-26-22330[1]- BEARING Komatsu China ["SN: 96514-UP"] ancatalogs:["20Y2622331", "20Y2622430"] Weight: 3.28 kg.

3.20Y-26-22340[1]- BEARING Komatsu China ["SN: 96514-UP"] ancatalogs:["20Y2622342", "20Y2622440"] Weight: 9.6 kg.

4.20Y-26-22191[1]- COVER Komatsu ["SN: 97767-UP"] ancatalogs:["20Y2622190"] Weight: 4.6 kg.

4.20Y-26-22190[1]- COVER Komatsu ["SN: 96514-97766"] ancatalogs:["20Y2622191"] Weight: 4.6 kg.

5.01010-81045[12]- BOLT Komatsu ["SN: 96514-UP"] ancatalogs:["0101051045", "01010D1045"] Weight: 0.039 kg.

6.01643-31032[12]- WASHER Komatsu ["SN: 80001-UP"] ancatalogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] Weight: 0.054 kg.

7.20Y-26-22420[1]- SEAL Komatsu China ["SN: 97767-UP"] ancatalogs:[] Weight: 0.3 kg.

7.07012-00125[1]- SEAL Komatsu China ["SN: 80001-97766"] ancatalogs:[] Weight: 0.142 kg.

[-1]- (20Y-26-22420,20Y-26-22191) |$$12.

8.20Y-26-21141[1]- SHAFT, 15 TEETH Komatsu OEM ["SN: 96514-UP"] ancatalogs:["20Y2621140", "20Y2621142"] Weight: 35 kg.

9.20Y-26-22170[1]- CARRIER Komatsu ["SN: 96514-UP"] ancatalogs:[] Weight: 8.55 kg.

10.20Y-26-22141[4]- GEAR, 36 TEETH Komatsu China ["SN: 97709-UP"] ancatalogs:["20Y2622140"] Weight: 1.8 kg.

10.20Y-26-22140[4]- GEAR, 36 TEETH Komatsu China ["SN: 96514-97708"] ancatalogs:["20Y2622141"] Weight: 1.8 kg.

11.20G-26-11240[4]- BEARING Komatsu China ["SN: 96514-UP"] ancatalogs:["20G2611241", "20G2611410"] Weight: 0.24 kg.

12.20Y-27-21240[8]- WASHER Komatsu China ["SN: 96514-UP"] ancatalogs:[] Weight: 0.02 kg.

13.20Y-26-22250[4]- PIN Komatsu China ["SN: 96514-UP"] ancatalogs:[] Weight: 0.52 kg.

14.20Y-27-21280[4]- PIN Komatsu China ["SN: 96514-UP"] ancatalogs:[] Weight: 0.01 kg.

15.20Y-26-21240[1]- PLATE Komatsu ["SN: 80001-UP"] ancatalogs:[] Weight: 5.1 kg.

16.112-32-11211[1]- BOLT Komatsu ["SN: 80001-UP"] ancatalogs:[] Weight: 0.09 kg.

17.20Y-26-22151[1]- GEAR, 101 TEETH Komatsu ["SN: 102083-UP"] ancatalogs:["20Y2622150"] Weight: 18.8 kg.

17.20Y-26-22150[1]- GEAR, 101 TEETH Komatsu ["SN: 96514-102082"] ancatalogs:["20Y2622151"] Weight: 18.8 kg.

18.20Y-26-22131[1]- GEAR, 27 TEETH Komatsu ["SN: 97709-UP"] ancatalogs:["20Y2622130"] Weight: 2.15 kg.

18.20Y-26-22130[1]- GEAR, 27 TEETH Komatsu ["SN: 96514-97708"] ancatalogs:["20Y2622131"] Weight: 2.15 kg.

19.04064-07525[1]- RING Komatsu ["SN: 96514-UP"] ancatalogs:[] Weight: 0.026 kg.

20.20Y-26-22220[1]- THRUST WASHER Komatsu ["SN: 96514-UP"] ancatalogs:[] Weight: 0.04 kg.

21.20Y-26-22160[1]- CARRIER Komatsu ["SN: 96514-UP"] ancatalogs:[] Weight: 5.1 kg.

22.20Y-26-22120[3]- GEAR, 39 TEETH Komatsu China ["SN: 96514-UP"] ancatalogs:[] Weight: 1.25 kg.

23.20Y-26-21281[3]- BEARING Komatsu ["SN: 110071-UP"] ancatalogs:["20Y2621280", "20X2621240", "20Y2621510"] Weight: 0.1 kg.

23.20Y-26-21280[3]- BEARING Komatsu ["SN: 80001-110070"] ancatalogs:["20Y2621281", "20X2621240", "20Y2621510"] Weight: 0.1 kg.

25.20Y-26-22240[3]- PIN Komatsu ["SN: 96514-UP"] ancatalogs:[] Weight: 0.367 kg.

27.20Y-26-22110[1]- GEAR, 22 TEETH Komatsu ["SN: 96514-UP"] ancatalogs:[] Weight: 0.4 kg.

28.20Y-26-22230[1]- THRUST WASHER Komatsu ["SN: 96514-UP"] ancatalogs:[] Weight: 0.1 kg.

29.20Y-26-22410[1]- COVER Komatsu China ["SN: 96514-UP"] ancatalogs:[]

30.01011-81450[4]- BOLT Komatsu China ["SN: 96514-UP"] ancatalogs:[]

31.01643-31445[4]- WASHER Komatsu ["SN: 96514-UP"] ancatalogs:["0164301432"] Weight: 0.019 kg.

32.07042-30617[1]- PLUG Komatsu China ["SN: 96514-UP"] ancatalogs:[]

33.07042-30108[1]- PLUG Komatsu ["SN: 96514-UP"] ancatalogs:["0704220108"] Weight: 0.008 kg.

34.07042-30415[1]- PLUG Komatsu ["SN: 96514-UP"] ancatalogs:[] Weight: 0.056 kg.

Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below cases

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* rust

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
