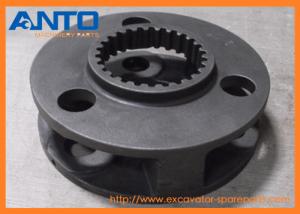

- EX200-5 Swing Gearbox Gear Carrier 1020329 1020328 1019790 For Hitachi Excavator Parts
The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing case.
| Excavator spare parts name | Swing reducer |
| Equipment Model | EX200-5 |
| Parts Category | excavator swing gear |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |

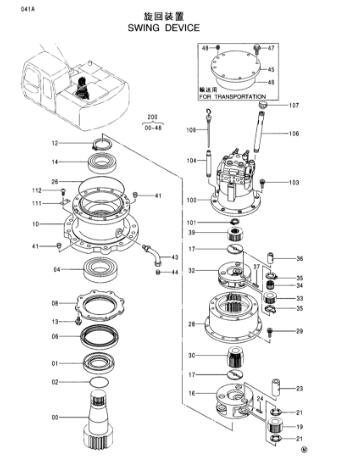

ENTIRE GROUP SWING DEVICE:
00.2036775[1] -
SHAFT;PROP. .
01.3045362[1] -
SLEEVE .
02.A811120[1] -
O-RING
04.4281798[1] -
BRG.;SPH.ROL.
06.4246275[1] -
SEAL;OIL
08.3060672[1] -
COVER
10.1020333[1] -
HOUSING
11.4364756[1] -
BRG.;ROL.
12.991352[1] -
RING;RETAINING
13.J011240[8] -
BOLT;SEMS
16.1020329[1] -
CARRIER
17.4176073[2] -
PLATE;THRUST
19.9742777[3] -
GEAR;PLANETARY
21.4266933[6] -
PLATE;THRUST
23.4336925[3] -
PIN
24.4027427[3] -
PIN;SPRING
26.4337206[1] -
O-RING
28.1019790[1] -
GEAR;RING
29.M341645[12] -
BOLT;SOCKET
30.3069514[1] -
GEAR;SUN
32.1020328[1] -
CARRIER
33.3069510[3] -
GEAR;PLANETARY
34.4336945[3] -
BRG.;NEEDLE
35.4336926[6] -
PLATE;THRUST
36.4336923[3] -
PIN
37.4051262[3] -
PIN;SPRING
39.3069512[1] -
GEAR;SUN
41.425176[2] -
CORK
43.8060496[1] -
PIPE
44.94-2013[1] -
PLUG
61.8053414[1] -
COVER (for transportation)
62.J011250[8] -
BOLT;SEMS (for transportation)
63.94-2011[1] -
PLUG (for transportation)
100.4330222[1] -
MOTOR;OIL
101.962002[1] -
RING;RETAINING
103.M341228[8] -
BOLT;SOCKET
104.4264452[1] -
PIPE
106.4332658[1] -
PIPE
107.4343365[1] -
CAP
109.3074223[1] -
GAUGE;LEVEL
111.3053093[1] -
NAME-PLATE
112.M492564[2] -
SCREW;DRIVE
200.9148922[1] -
SWING DEVICE (WITHOUT MOTOR)
1. The gear parts are built to fit to the genuine drive gearbox system.
2. The gear parts are supplied strictly according to the genuine parts catalog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below cases
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* rust
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
