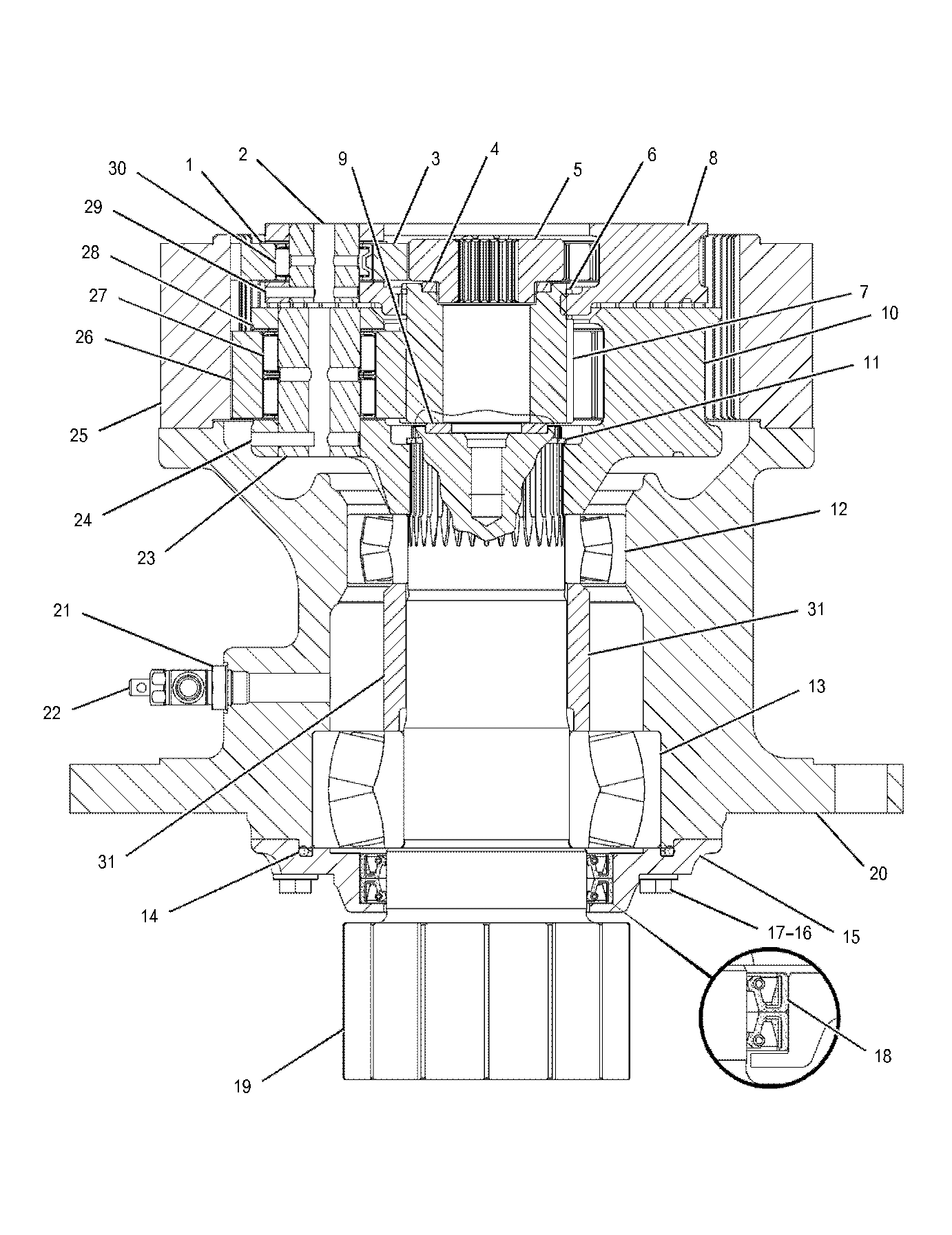

The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
1.094-0584[6] -
WASHER (40.3X72X1-MM THK)
2.094-1509[3] -
SHAFT-PLANETARY .
3.148-4733[3] -
GEAR-PLANETARY (26-TEETH)
4.114-1581[1] -
SPACER (57.5X74X6-MM THK)
5.148-4732[1] -
GEAR-SUN (20-TEETH)
6.093-1729[2] -
RING-RETAINING
7.148-4632[1] -
GEAR-SUN (23-TEETH)
8.191-2578[1] -
CARRIER-PLANETARY
9.7Y-1434[1] -
SPACER (40X69.5X6-MM THK)
10.148-4637[1] -
CARRIER-PLANETARY
11.148-4640[1] -
RING-RETAINING
12.148-4643[1] -
BEARING
13.095-1022[1] -
BEARING-ROLLER
14.148-4642[1] -
SEAL-O-RING
15.227-6228[1] -
CAGE
16.453-3447 M[6] -
BOLT (M12X1.75X40-MM)
17.451-2182[6] -
WASHER-HARD (13.5X25.5X3-MM THK)
18.199-4561[2] -
SEAL-LIP TYPE
19.148-4636[1] -
SHAFT-PINION
20.148-4638[1] -
HOUSING
21.3K-0360[1] -
SEAL-O-RING
22.6V-7238[1] -
VALVE-SHUTOFF (SWING DRIVE)
23.148-4634[3] -
SHAFT-PLANETARY
24.095-0891[3] -
PIN-SPRING
25.148-4635[1] -
GEAR-RING (73-TEETH)
26.148-4633[3] -
GEAR-PLANETARY (25-TEETH)
27.7Y-0252[6] -
BEARING AS-ROLLER
28.094-0611[6] -
WASHER (47.3X76X1-MM THK)
29.095-0886[3] -
PIN-SPRING
30.094-1516[3] -
BEARING-ROLLER
31.171-9383[1] -
SPACER
1U-8846 BF-
SEALANT-GASKET
1. The gear parts are built to fit to the genuine drive gearbox system.
2. The gear parts are supplied strictly according to the genuine parts catalog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* rust
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
